Professional Oil Drain TP3194 Balancing – Durable
The FB3194 are produced with steel and applications are extracting oil from cars
- Vacuum degree： 0-1 bar
- Working perssure： 8-10 bar
- Tank capacity： 70L
- Basin capacity： 10L
- Graduated cup： 10L

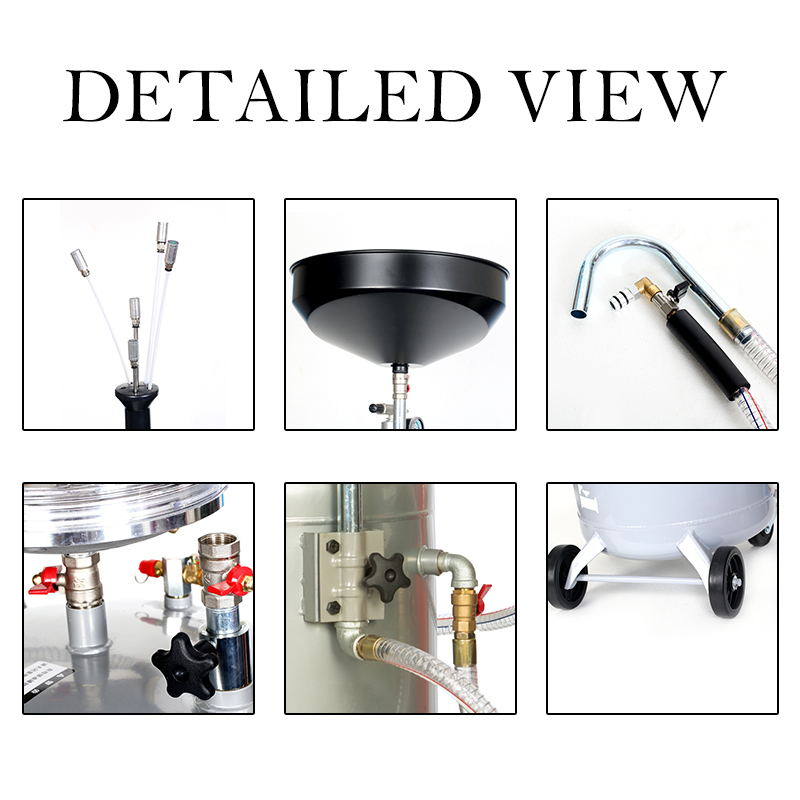

Oil Drain Details
This premium equipment boasts a vacuum degree of 0-1 bar and a robust working pressure of 8-10 bar, ensuring fast and effective fluid extraction. With a generous tank capacity of 70L and a 10L basin and graduated cup, the FB3194 is equipped to handle high-volume jobs with ease.
Tailored for versatility, it efficiently manages lubricating oil with collection speeds of 0.8L/min (Φ3.5mm), 1.0L/min (Φ4.5mm), and 1.6L/min (Φ6.5mm), catering to various service requirements. The unit’s weight of 26kgs is optimized for stability, while its operational oil temperature range of 40-60℃ ensures peak performance under diverse working conditions.
Oil Drain Specifications
| Model | TP3194 |
| Vacuum degree | 0-1 bar |
| Working perssure | 8-10 bar |
| Tank capacity | 70L |
| Basin capacity | 10L |
| Medium | lubricating oil |
| Weight | 21kgs |
| Working oil temperature | 40-60℃ |
Oil Drain Application Scenarios
Our product stands out with its robust vacuum degree ranging from 0 to 1 bar and a consistent working pressure between 8 to 10 bar. The substantial tank capacity of 70L, complemented by a 10L basin and graduated cup, ensures a seamless oil change process.
The FB3194 is adept at handling lubricating oil, with varying collecting speeds to suit your needs: 0.8L/min (Φ3.5mm), 1.0L/min (Φ4.5mm), and 1.6L/min (Φ6.5mm). Despite its power, it maintains a manageable weight of 26kgs and is designed to function within the optimal oil temperature range of 40-60℃, guaranteeing reliability and durability.
