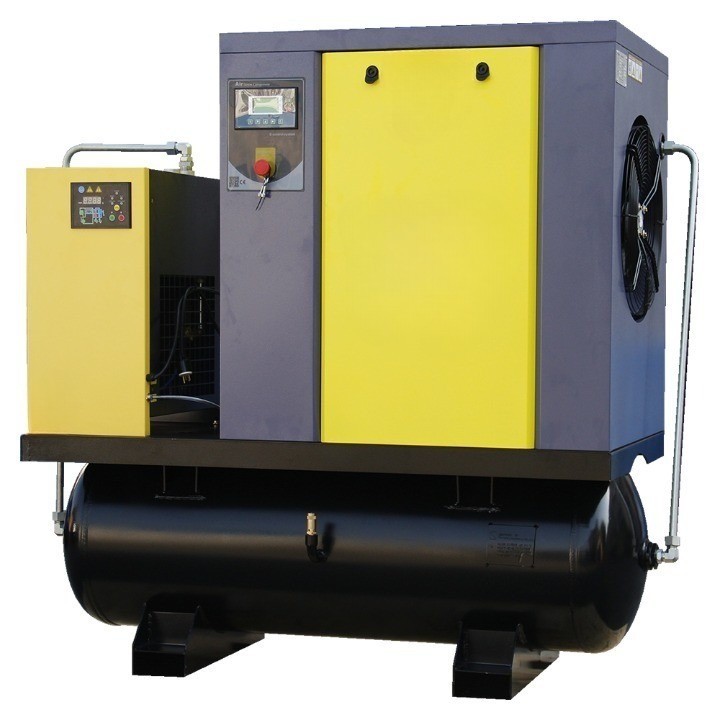

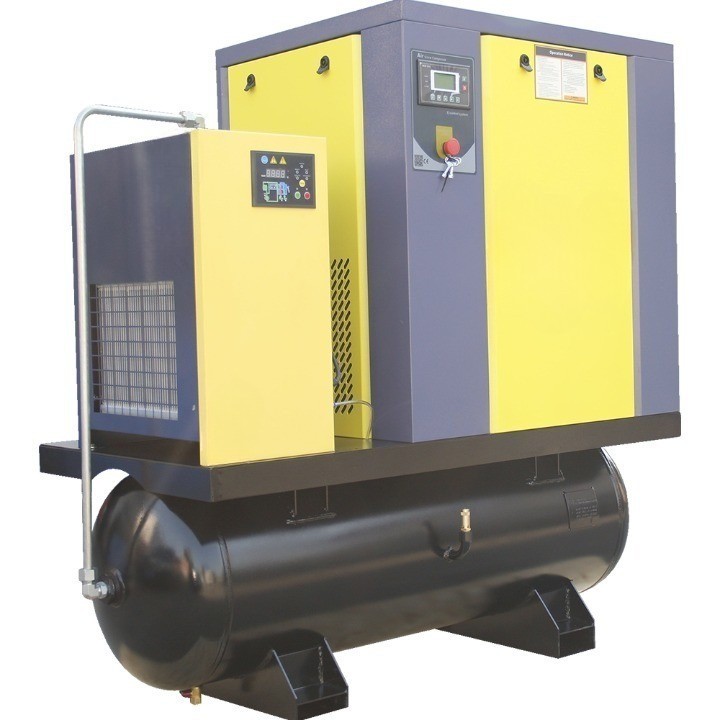

4-IN-1 Screw Air Compressor with Air Dryer and Air Tank Filters PACK15-TA
The PACK15-TA are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Flow rate:2.3m3/min 81cfm
- Working pressure: 8bar 125psi
- OME:7-16bar
- Control: PLC
- Driven: belt
Products Categories
Get A Free Quote
Screw Air Compressor Details
This comprehensive unit combines a high-performance air compressor with an integrated air dryer, air tank, and filtration system, all in one compact design.
The PACK15-TA boasts a consistent flow rate of 2.3m³/min at 81cfm, with a working pressure of 8bar (125psi) and an OME range of 7-16bar. Its PLC control and belt-driven mechanism ensure precise operation, while the air cooling feature maintains optimal temperatures. The electric motor is a robust 15 KW (20 HP) unit, with voltage customization available to suit your specific needs (220V/380V/460V).
Notably, the PACK15-TA is equipped with a 300L (80Gal) ASME-certified air tank, ensuring safety and durability. The included SE-20A air dryer delivers an air flow of 2.6m³/min at 8bar, with an inlet temperature of less than 110F and a dew point range of 38-50F, minimizing moisture content to just 0.75 g/m³.
Screw Air Compressor Specifications
| Model | PACK15-TA |
| Voltage/Frequency | 220V/380V/460V can be customized |
| Input Power | 15 KW 20 HP |
| Flow rate | 2.3m3/min 81cfm |
| Working pressure | 8bar 125psi |
| Tank | 300L 80Gal ASME |
| Dimension | 1900*860*1860mm |
Screw Air Compressor Application Scenarios
The PACK15-TA offers a superior flow rate of 2.3m³/min at 81cfm, with a versatile working pressure of 8bar (125psi), and an adjustable OME range from 7-16bar to cater to your specific needs. It is equipped with a sophisticated PLC control system for seamless operation and a belt-driven mechanism for durability and reduced maintenance. The unit’s air cooling feature ensures efficient heat dissipation, while the electric motor, rated at 15 KW (20 HP), can be customized to your electrical requirements (220V/380V/460V).
Our commitment to quality is evident in the PACK15-TA’s robust 300L (80Gal) ASME-certified air tank, which guarantees safety and longevity. The SE-20A air dryer is a testament to our dedication to providing clean, dry air, with a flow capacity of 2.6m³/min at 8bar, an inlet temperature specification of less than 110F, and a dew point range of 38-50F, ensuring your air supply is free from excessive moisture with a water content of only 0.75 g/m³.
The PACK15-TA is not just a product; it’s a promise of efficiency, reliability, and quality. We are eager to discuss how this compressor can be tailored to fit into your operations seamlessly. Please contact me at your earliest convenience to explore the benefits of the PACK15-TA.

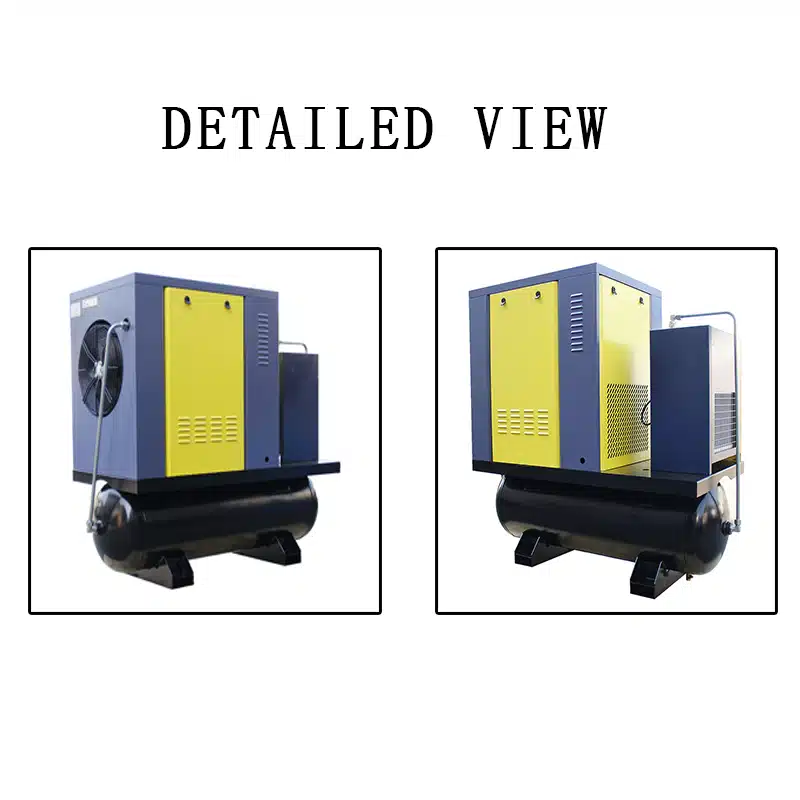

Screw Air Compressor PACK15-TA Detail Displa
