4-IN-1 Screw Air Compressor With Air Dryer And Air Tank Filters PACK7-TA
The PACK7-TA are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Flow rate:1.1m3/min 39cfm
- Working pressure: 8bar 125psi
- OME:7-16bar
- Control: PLC
- Driven: belt
Products Categories
Get A Free Quote
4-IN-1 Screw Air Compressor Details
This robust model boasts a consistent flow rate of 1.1m³/min at 39cfm, with a working pressure of 8bar (125psi), and offers OME customization options ranging from 7-16bar to suit your specific needs. The PLC control system ensures precision, while the belt-driven mechanism and air cooling feature guarantee longevity and reliability.
Our PACK7-TA is equipped with a powerful 7.5 KW electric motor, adaptable to various voltages (220V/380V/460V), and designed with an F insulation level for enhanced safety. The discharge temperature remains below ambient +8 ℃, ensuring optimal performance.
The unit includes a 300L (80Gal) ASME-certified air tank and an SE-10A air dryer, capable of handling an air flow of 1.3m³/min at 8bar (45cfm at 125psi). The system maintains a dew point of 38-50F and a low water content of 0.75 g/m3, even with an inlet temperature of less than 110F.
4-IN-1 Screw Air Compressor Specifications
| Model | PACK7-TA |
| Voltage/Frequency | 220V/380V/460V can be customized |
| Input Power | 7.5 KW 10HP |
| Flow rate | 1.1m3/min 39cfm |
| Working pressure | 8bar 125psi |
| Tank | 300L 80Gal ASME |
| Dimension | 1800*635*1410mm |
4-IN-1 Screw Air Compressor Application Scenarios
Our PACK7-TA model is a comprehensive air solution, integrating an advanced air dryer and tank filters, ensuring a steady flow rate of 1.1m³/min at 39cfm with a working pressure of 8bar (125psi). The unit’s adaptability is showcased through its OME range of 7-16bar, catering to diverse industrial requirements.
The compressor is engineered with a PLC control system for precise operation, a belt-driven mechanism for durability, and air cooling for consistent performance. The electric motor, rated at 7.5 KW (10 HP), can be customized to your voltage needs (220V/380V/460V), and is built with an F insulation level for maximum safety.
Featuring a 300L (80Gal) ASME-certified air tank and an SE-10A air dryer, the PACK7-TA excels in maintaining a high-quality air supply with an air flow of 1.3m³/min at 8bar (45cfm at 125psi). It effectively reduces water content to 0.75 g/m3 and achieves a dew point between 38-50F, even with inlet temperatures up to 110F.

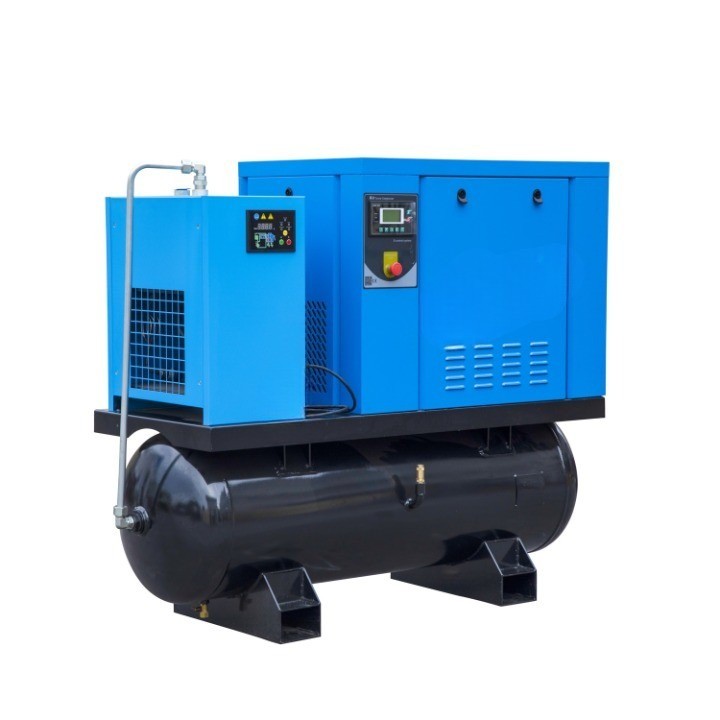

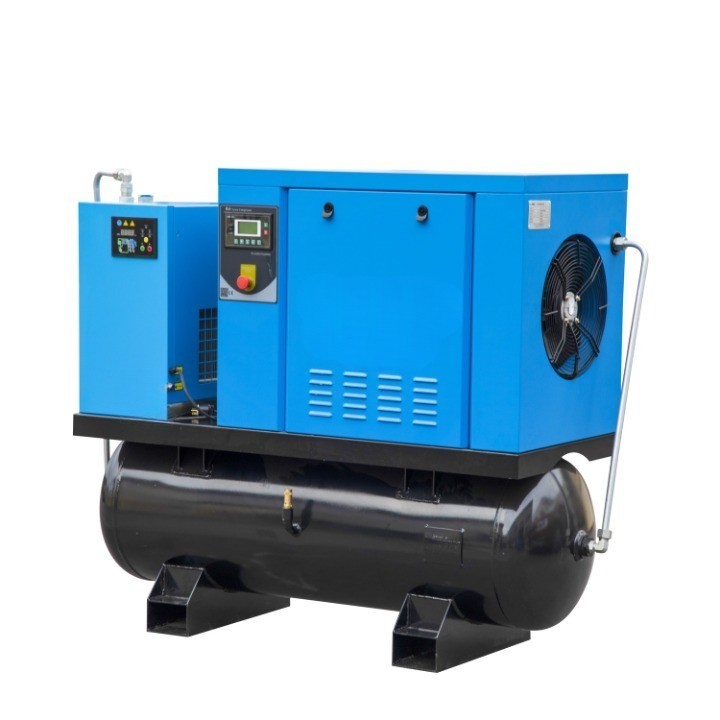

Screw Air Compressor PACK7-TA Detail Display
