4-IN-1 Variable Speed Screw Air Compressor With Air Dryer And Air Tank Filters PACK7-TAVSD
The PACK7-TAVSD are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Flow rate:1.1m3/min 39cfm
- Working pressure: 8bar 125psi
- OME:7-16bar
- Control: PLC
- Driven: belt
Products Categories
Get A Free Quote
4-IN-1 Variable Speed Screw Air Compressor Details
The PACK7-TAVSD stands out with its:
– Exceptional flow rate of 1.1m³/min (39cfm) and versatile working pressure from 7 to 16bar (125psi), catering to diverse industrial demands.
– Advanced PLC control for precision and belt-driven mechanism for reliability, all within a compact design.
– Customizable electric motor (7.5 KW, 10 HP) with multiple voltage options (220V/380V/460V) to seamlessly integrate into your existing systems.
– F class insulation and a discharge temperature that ensures optimal performance by staying below ambient +8 ℃.
– A substantial 300L (80Gal) ASME-certified air tank and a high-efficiency SE-10A air dryer, delivering a consistent air flow of 1.3m³/min@8bar (45cfm@125psi), with superior air quality characterized by an inlet temperature of less than 110F, a dew point of 38-50F, and minimal water content of 0.75 g/m³.
4-IN-1 Variable Speed Screw Air Compressor Specifications
| Model | PACK7-TAVSD |
| Voltage/Frequency | 220V/380V/460V can be customized |
| Input Power | 7.5 KW 10HP |
| Flow rate | 1.1m3/min 39cfm |
| Working pressure | 8bar 125psi |
| Tank | 300L 80Gal ASME |
| Dimension | 1800*635*1410mm |
4-IN-1 Variable Speed Screw Air Compressor Application Scenarios
The PACK7-TAVSD model is a powerhouse, featuring:
– A high flow rate of 1.1m³/min (39cfm) with a flexible working pressure range of 7-16bar (125psi), making it suitable for a wide array of industrial applications.
– Precision control through a state-of-the-art PLC system, combined with a belt-driven mechanism for consistent performance and air cooling for longevity.
– A robust 7.5 KW (10 HP) electric motor, available in various voltages (220V/380V/460V) to accommodate your specific power requirements.
– Class F insulation and a discharge temperature that is always less than ambient +8 ℃, ensuring energy efficiency and safety.
– An integrated 300L (80Gal) ASME-certified air tank and a SE-10A air dryer, providing a steady air flow of 1.3m³/min@8bar (45cfm@125psi). The system maintains an inlet temperature of less than 110F, a dew point between 38-50F, and a low water content of 0.75 g/m³, resulting in dry, clean air for your tools and processes.

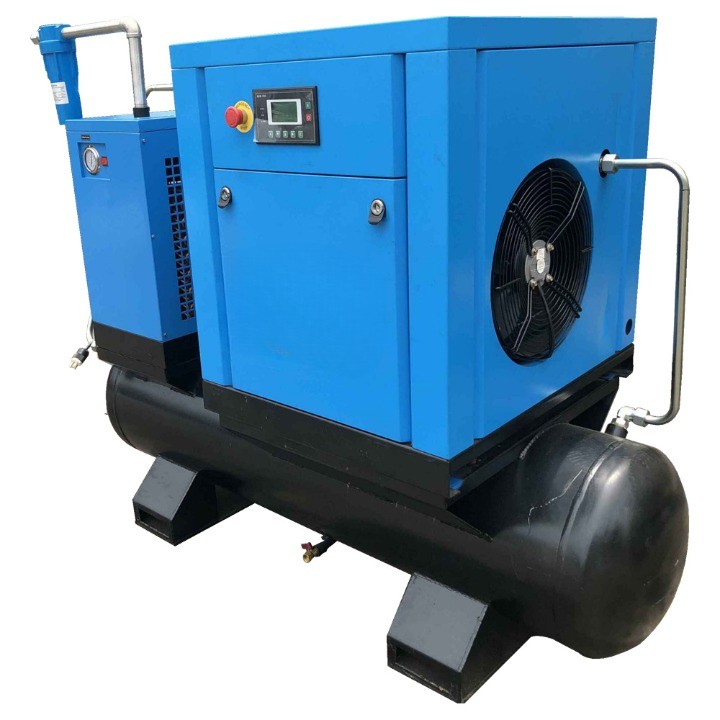

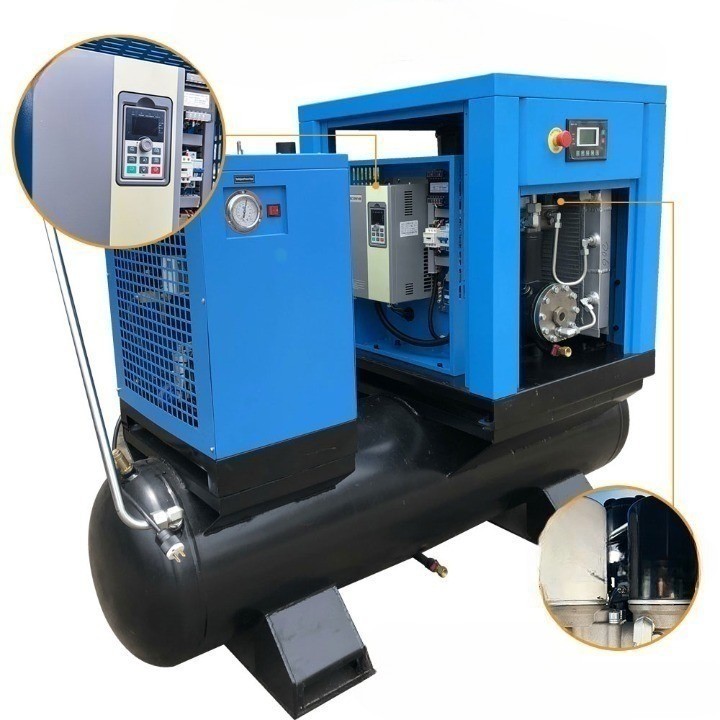

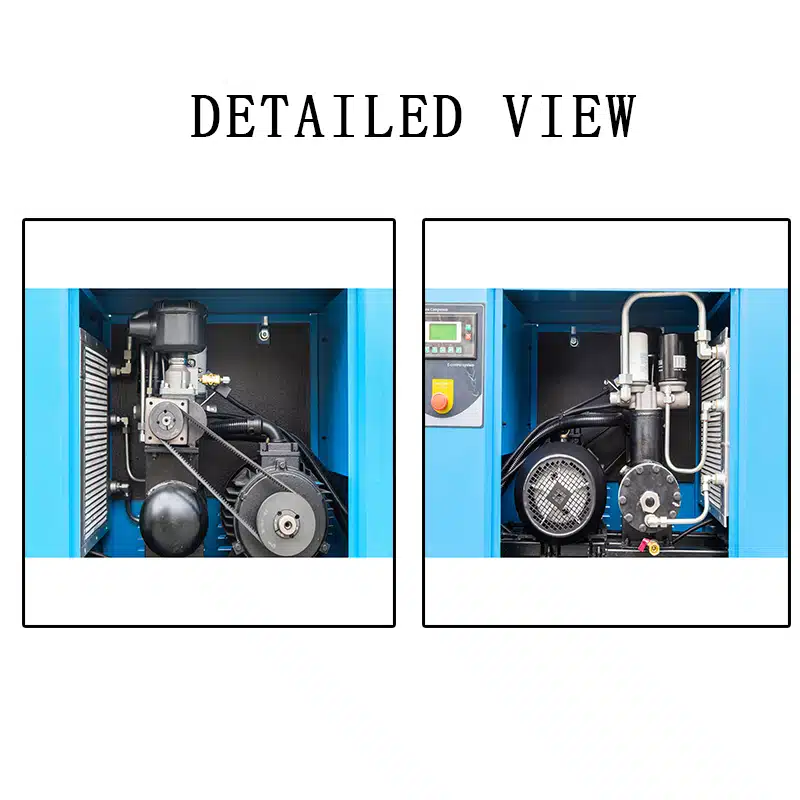

Variable Speed Screw Air Compressor PACK7-TAVSD Detail Display
