Electric Hydraulic Four Post Triple Stacker Car Parking Lift
The TP-8PP3 are produced with steel and applications are car parking.
- Sparated 4 post car parking lifts installed together,one external and one internal
- Hydraulic driven cylinder with rope lifting system through sheaves
- Double safety locks in each post:first is one piece adjustable safety lock ladder and the other will be activated
- automatically in case of steel wire rupture
Four Post Triple Stacker Car Parking Lift Details
The TP-8PP3 4 post parking lift offers several benefits that can greatly enhance your business growth.
The TP-8PP3 is designed with separate 4 post car parking lifts, one external and one internal. It features a hydraulic driven cylinder with a rope lifting system through sheaves, ensuring smooth and efficient operation. Safety is a top priority, with double safety locks in each post, including an adjustable safety lock ladder and an automatic lock in case of steel wire rupture.
Additionally, the foldable ramps are suitable for sport cars and occupy less space, maximizing the usability of your parking area. The automatic locking system and separate operation box for each lift provide convenience and ease of use. Wheel stoppers on the upper platform ensure added safety.
Rest assured, all steel parts are sandblasted, anti-corrosion primer painted, and top finish color coated, guaranteeing durability and longevity.
We believe that the TP-8PP3 4 post parking lift can greatly benefit your business by optimizing your parking space and ensuring the safety of your customers’ vehicles. I would be delighted to discuss further details and explore how we can collaborate to enhance your business growth.

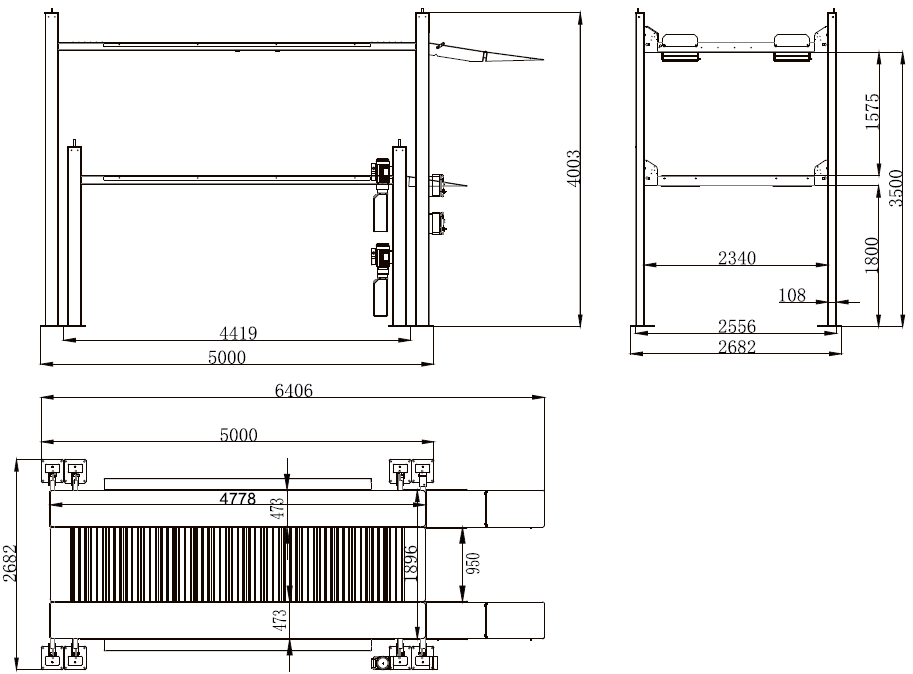

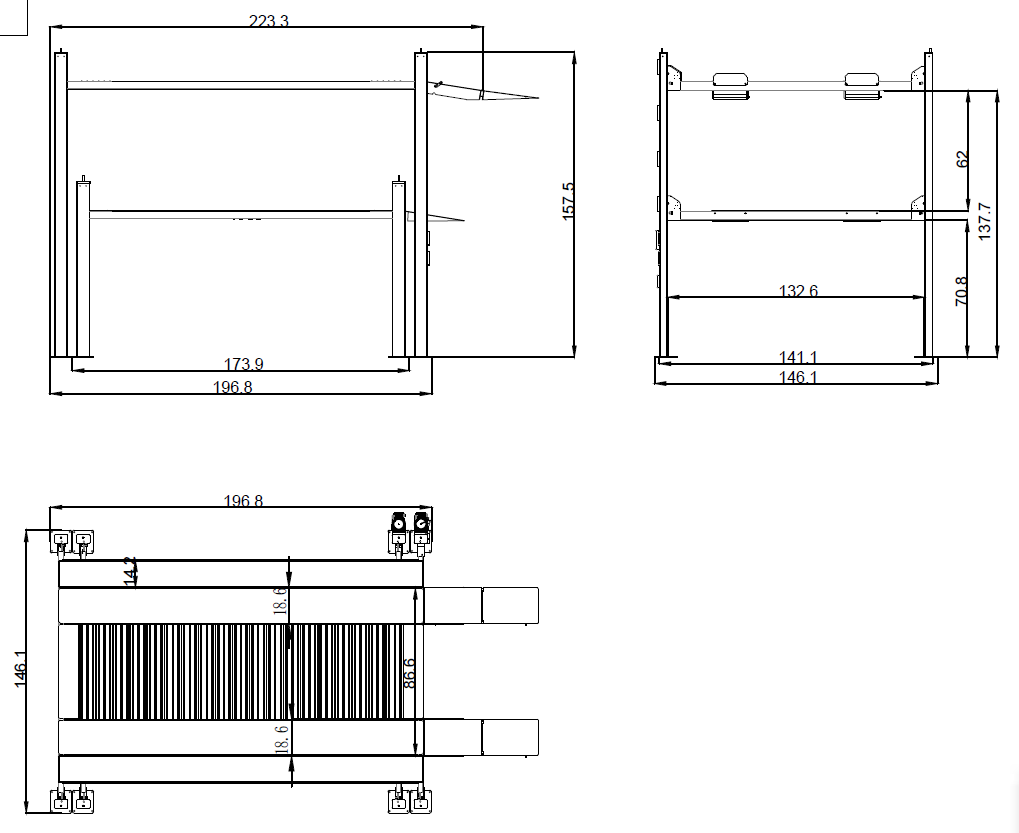

Four post triple stacker car parking lift specifications
| Model | TP-8PP3 |
| Capacity | 3000kg / 6600lbs |
| Lifting height | 1800mm,1600mm/ 70.9‘’,63” |
| Runway length | 4778mm /188.1” |
| Outer dimensions | 6404*2682*4003mm |
| Power of motor | 2.2kw |
| Power supply | 110v/220v/380v |
| Net weight | 1830kg |
| Packing size | 4800*550*700mm,4300*550*700mm |
Four Post Triple Stacker Car Parking Lift Application Scenarios
Crafted with high-grade steel, our lifts are engineered for durability and performance. The hydraulic-driven cylinder, coupled with a reliable rope lifting system through sheaves, ensures smooth operation. Safety is paramount; hence, we’ve incorporated dual safety locks on each post. The first is an adjustable safety lock ladder, and the second is an automatic lock that engages in the event of a steel wire rupture.
Moreover, the TP-8PP3’s foldable ramps are particularly suitable for low-clearance sports cars and are designed to minimize the footprint when not in use. This feature is ideal for facilities where space conservation is essential.
We are confident that our Four Post Triple Stacker Car Lift will exceed your expectations and become an indispensable asset to your parking facilities. For a comprehensive discussion or to arrange a demonstration, please feel free to contact me.
