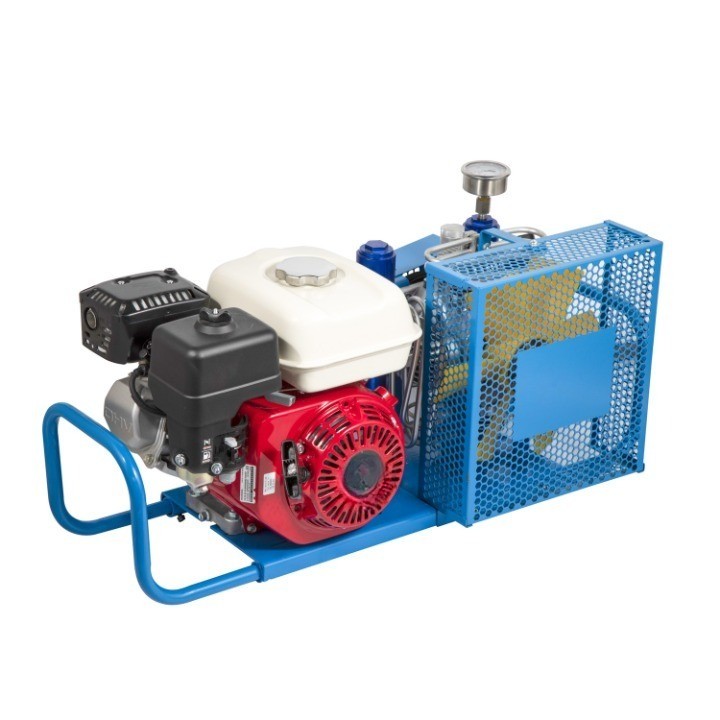

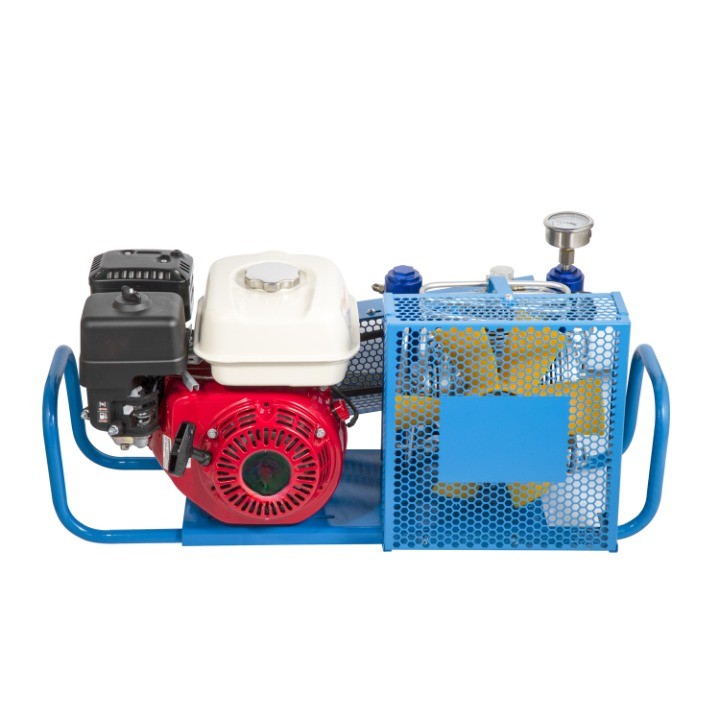

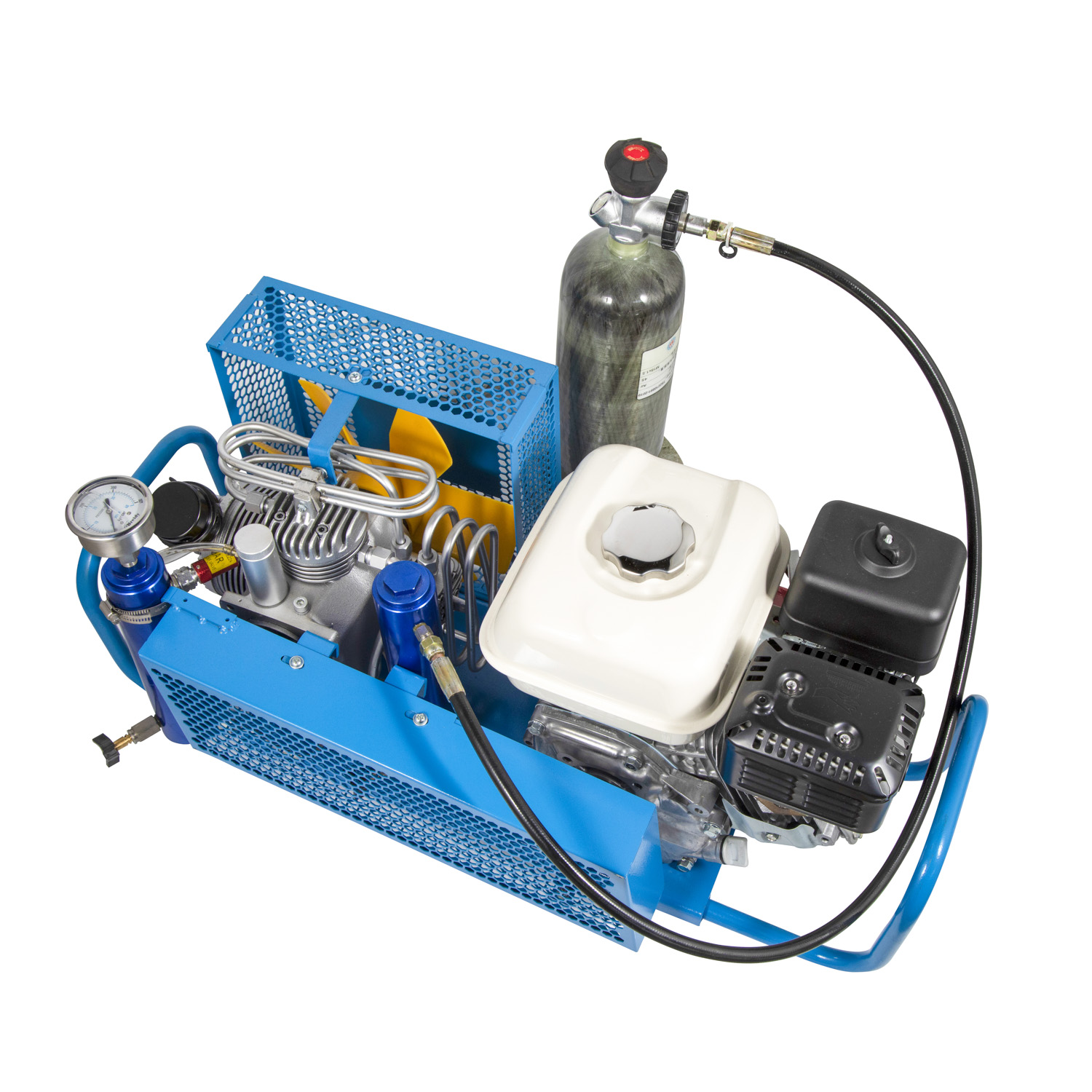

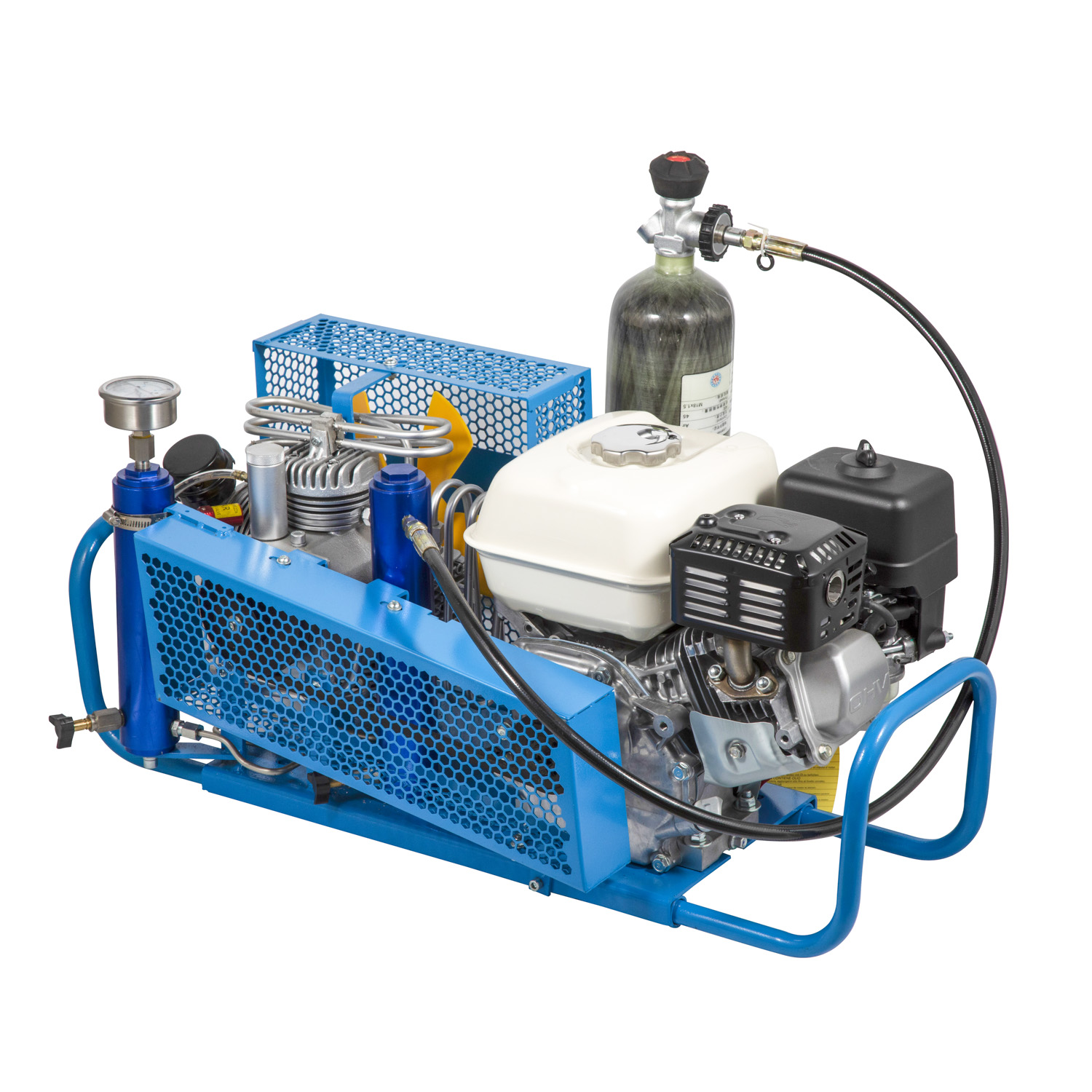

High Pressure Refilling Breathe Air Compressor SCU100P
The SCU100P are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Four-level compression
- Flow rate:100 L/min 3.5cfm
- Filling time:20 minutes for 6L tank
- Working pressure:300bar /4500psi
- Max pressure:310bar 4650psi
High Pressure Air Compressor Details
This unit boasts a four-level compression system, delivering a substantial flow rate of 100 L/min (3.5cfm), enabling a swift 20-minute refill for a 6L tank. The SCU100P operates at a working pressure of 300bar (4500psi), with a maximum pressure threshold of 310bar (4650psi), ensuring it meets the most demanding requirements.
Powered by a reliable Honda gas engine rated at 5.5hp and featuring a belt-driven mechanism, the SCU100P promises durability and efficiency. The splash lubrication system ensures smooth operation, while the manual starter and auto-stop switch provide convenience and safety. Additionally, the manual condensate drain and single filling hose connection are designed for ease of use.
The compressor’s dimensions of 900x480x490 mm and a weight of 45 kg make it a practical choice for various settings. We believe the SCU100P will significantly enhance your operations with its superior performance and user-friendly features.
High Pressure Air Compressor Specifications
| Model | SCU100P |
| Max pressure | 310bar 4650psi |
| Engine power | Honda gas 5.5hp |
| Flow rate | 100 L/min 3.5cfm |
| Working pressure | 300bar /4500psi |
| Filling time | 20 minutes for 6L tank |
| Dimension | 900-480-490mm |
High Pressure Air Compressor Application Scenarios
The SCU100P stands out with its four-stage compression, delivering a consistent flow rate of 100 L/min (3.5cfm), and a rapid 20-minute fill time for a 6L tank. It operates at a working pressure of 300bar (4500psi), with a maximum pressure capacity of 310bar (4650psi), catering to the most rigorous usage scenarios.
Equipped with a robust Honda 5.5hp gas engine and belt-driven mechanism, the SCU100P is built for endurance and performance. Its splash lubrication system ensures longevity, while the manual starter and auto-stop switch add layers of operational safety and convenience. The manual condensate drain and single filling hose connection are designed for user-friendly maintenance and setup.
Compact in size (900x480x490 mm) and weighing just 45 kg, the SCU100P is both portable and space-efficient, ideal for various operational contexts. We are confident that the SCU100P will be a valuable addition to your equipment portfolio, enhancing both efficiency and productivity.
