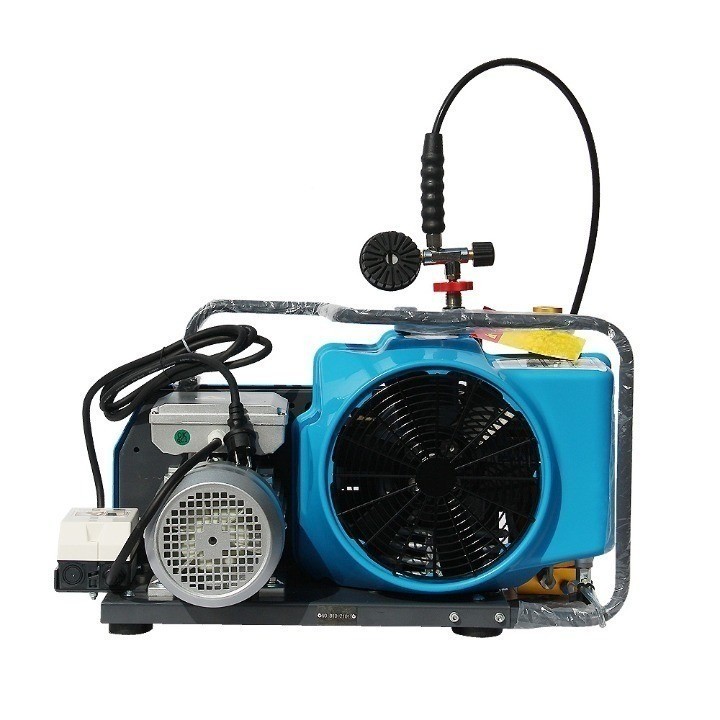

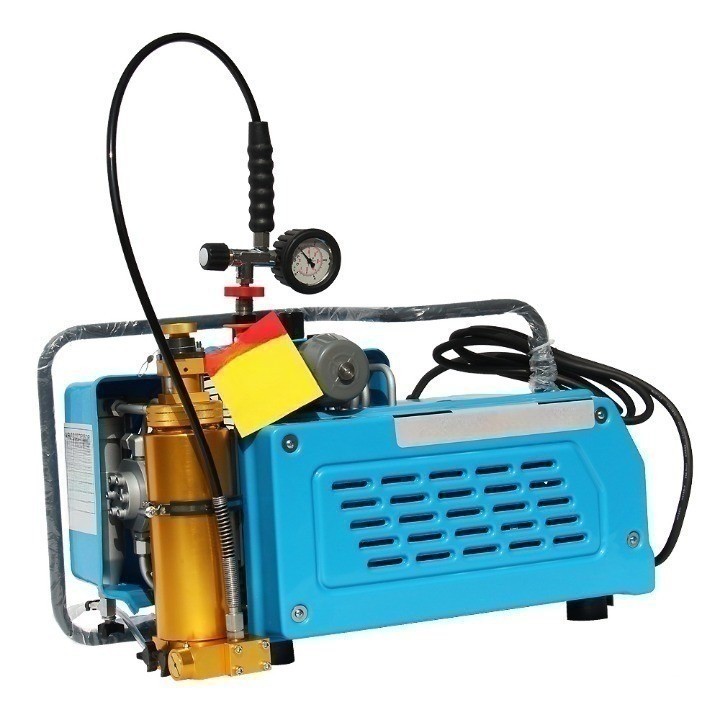

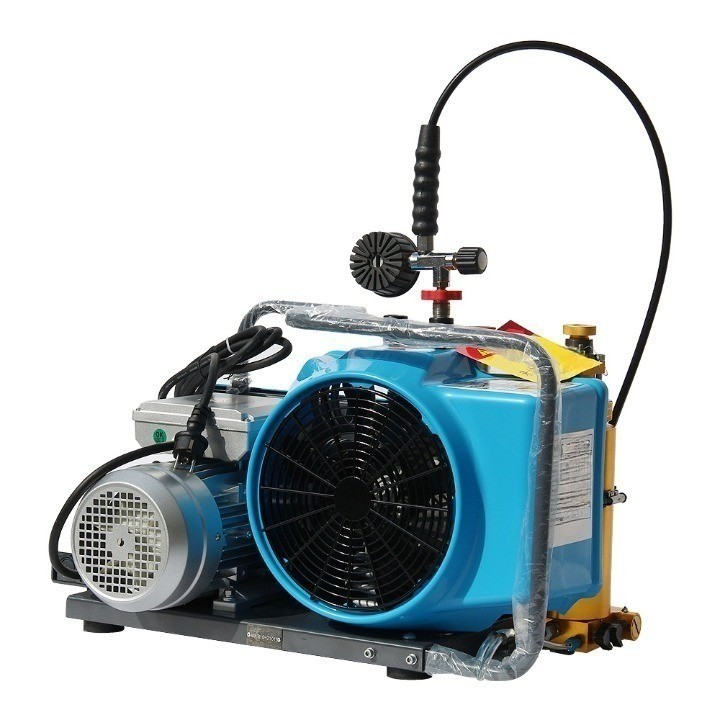

High Pressure Refilling Breathe Air Compressor SCW100
The SCW100 are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Three-level compression
- Flow rate:100 L/min 3.5cfm
- Filling time:20 minutes for 6L tank
- Working pressure:300bar /4500psi
- Max pressure:330bar 5000psi
High Pressure Air Compressor Details
The SCW100 stands out with its efficient three-level compression system and rapid filling capability, delivering a flow rate of 100 L/min (3.5 cfm) and replenishing a 6L tank in just 20 minutes. Engineered for reliability, it operates at a working pressure of 300 bar / 4500 psi, with a maximum pressure threshold of 330 bar / 5000 psi.
Our compressor is powered by an electric 2.2 kW / 3.0 hp motor, suitable for both 50/60 Hz single-phase supplies, and features a belt-driven mechanism with splash lubrication for longevity. The user-friendly ON/OFF button and manual stop switch ensure operational ease, while the manual condensate drain and single filling hose connection point to its practical design.
Compact in size (700*490*600 mm) and weighing just 60 kg, the SCW100 is an unobtrusive addition to any setup, maintaining a low noise level of 73 dB(A) to support a more pleasant working environment.
High Pressure Air Compressor Specifications
| Model | SCW100 |
| Max pressure | 330bar 5000psi |
| Engine power | Electric 2.2kw/3.0hp 50/60hz single phase |
| Flow rate | 100 L/min 3.5cfm |
| Working pressure | 300bar /4500psi |
| Filling time | 20 minutes for 6L tank |
| Dimension | 700*490*600 mm |
High Pressure Air Compressor Application Scenarios
Our SCW100 model boasts a three-level compression system, ensuring a consistent and powerful flow rate of 100 L/min (3.5 cfm), capable of filling a 6L tank in a mere 20 minutes. It operates at a working pressure of 300 bar / 4500 psi, with a maximum pressure of 330 bar / 5000 psi, to accommodate the most demanding applications.
