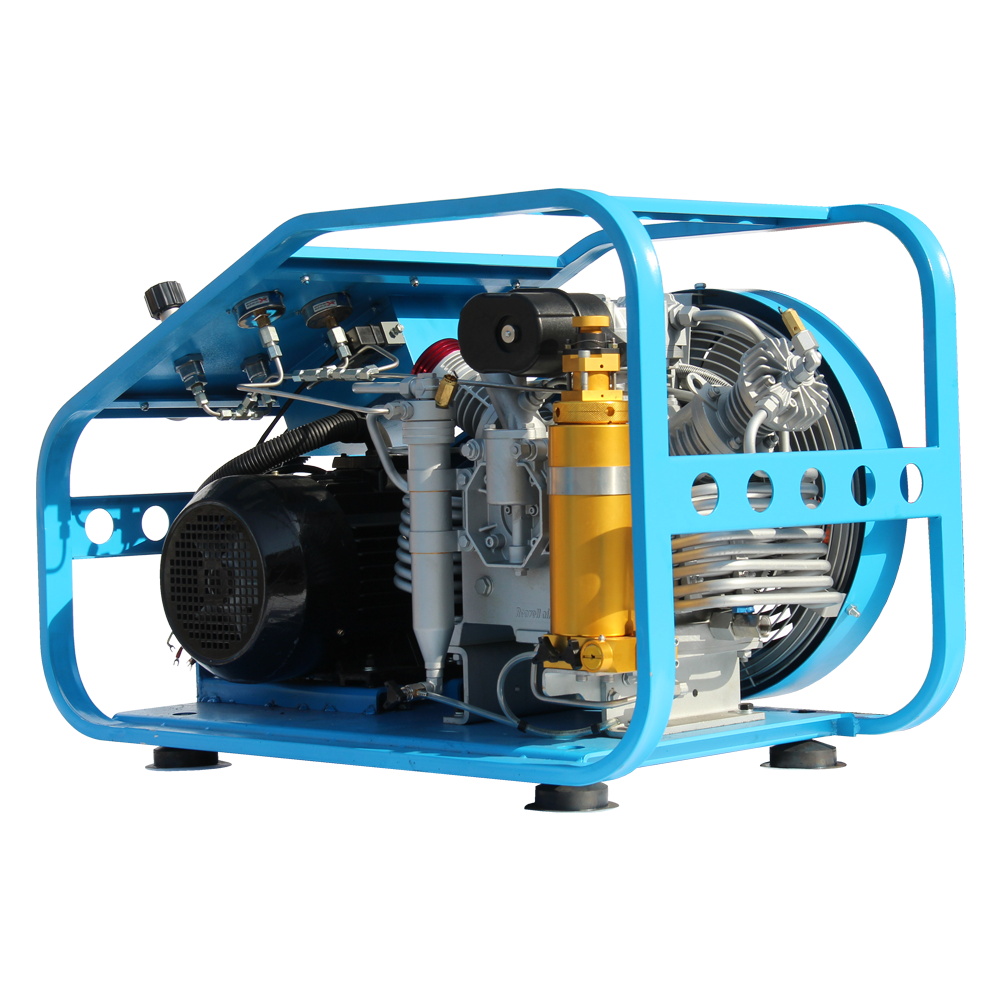

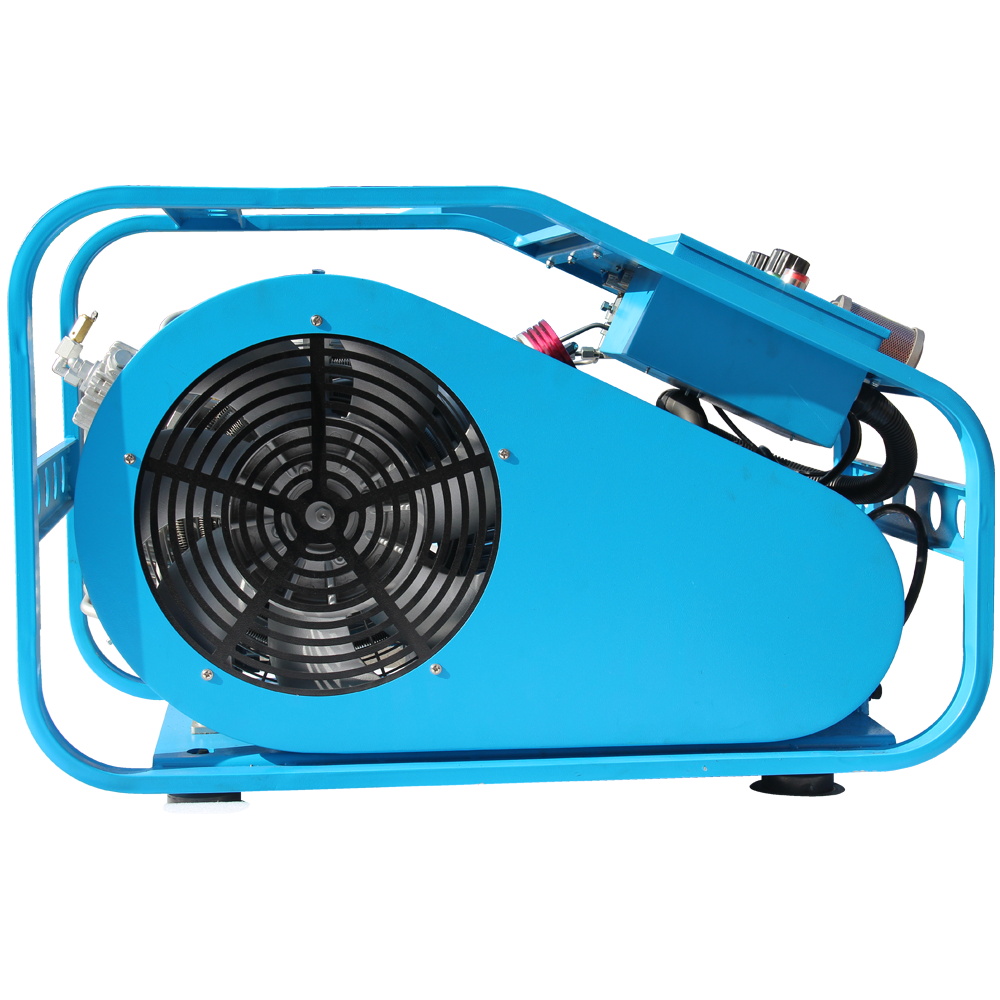

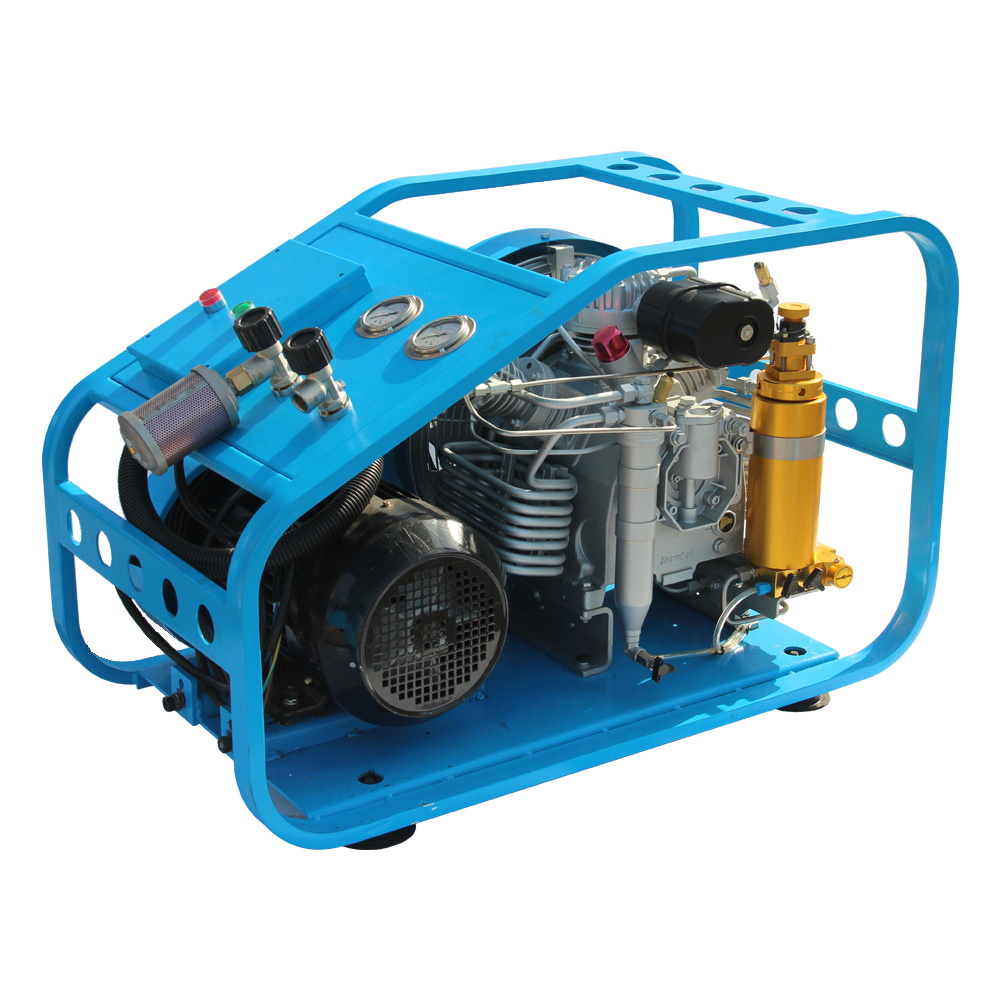

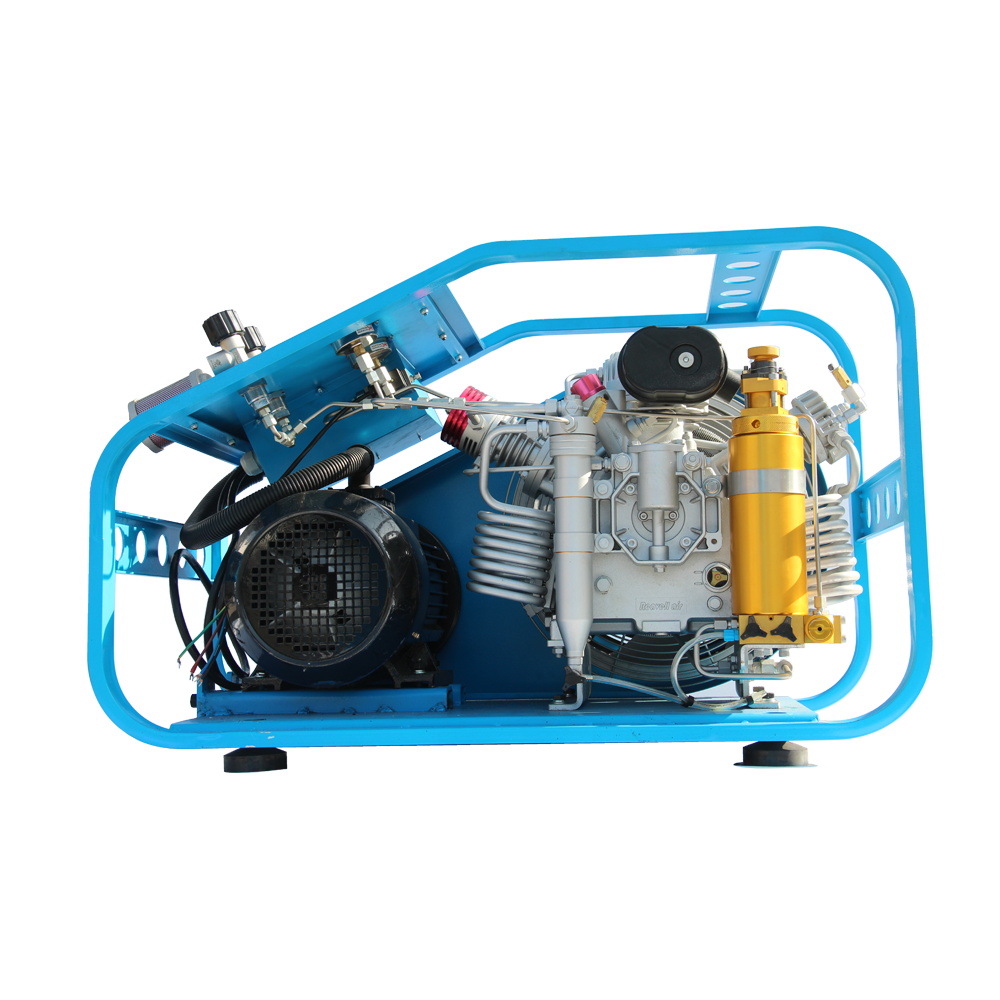

High Pressure Refilling Breathe Air Compressor SCW250
The SCU100P are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering…
- Three-level compression
- Flow rate:250 L/min 8.75cfm
- Filling time: 8 minutes for 6L tank to 300bar
- Working pressure:300bar /4500psi
- Max pressure:330bar 5000psi
High Pressure Air Compressor Details
The SCW250 boasts a three-level compression system, delivering a substantial flow rate of 250 L/min, enabling you to refill a 6L tank to 300bar in a mere 8 minutes. Its robust construction ensures a working pressure of 300bar and a maximum pressure of 330bar, guaranteeing performance under the most demanding conditions.
Equipped with a powerful electric 5.5kw/7.5hp motor, 380v/50hz three-phase, and belt-driven mechanism, the SCW250 promises durability and ease of use. The unit features a manual stop switch, ON/OFF button starter, and manual condensate drain, all designed for operator convenience. Additionally, it includes two filling hose connections, ensuring a streamlined refilling process.
The SCW250’s compact dimensions (1100*750*750 mm) and a weight of 180 kg make it a practical addition to your equipment arsenal, without compromising on space. Despite its power, it operates at a noise level of 7, ensuring a more comfortable working environment.
High Pressure Air Compressor Specifications
| Model | SCW250 |
| Max pressure | 330bar 5000psi |
| Engine power | Electric 5.5kw/7.5hp 380v/50hz three phase |
| Flow rate | 250 L/min 8.75cfm |
| Working pressure | 300bar /4500psi |
| Filling time | 8 minutes for 6L tank to 300bar |
| Dimension | 1100*750*750mm |
High Pressure Air Compressor Application Scenarios
High Pressure SCW250, a cutting-edge air compressor tailored for Scuba, SCBA, Diving, and PCP Paintball applications. This model is engineered to optimize your refilling operations with its impressive three-level compression, delivering a flow rate of 250 L/min and the capability to fill a 6L tank to 300bar in approximately 8 minutes.
The SCW250 is designed for durability and performance, operating at a working pressure of 300bar with a maximum pressure threshold of 330bar. Its electric 5.5kw/7.5hp motor, compatible with a 380v/50hz three-phase power supply, and belt-driven mechanism, ensure reliable and consistent operation.
Ease of use is a hallmark of the SCW250, featuring a straightforward ON/OFF button starter, manual stop switch, and manual condensate drain for hassle-free maintenance. The unit also comes with two filling hose connections to expedite the refilling process.
Despite its robust capabilities, the SCW250 maintains a compact footprint (1100*750*750 mm) and a manageable weight of 180 kg, making it a versatile addition to your equipment lineup. Additionally, it operates with a low noise level of 7, contributing to a more pleasant working environment.
