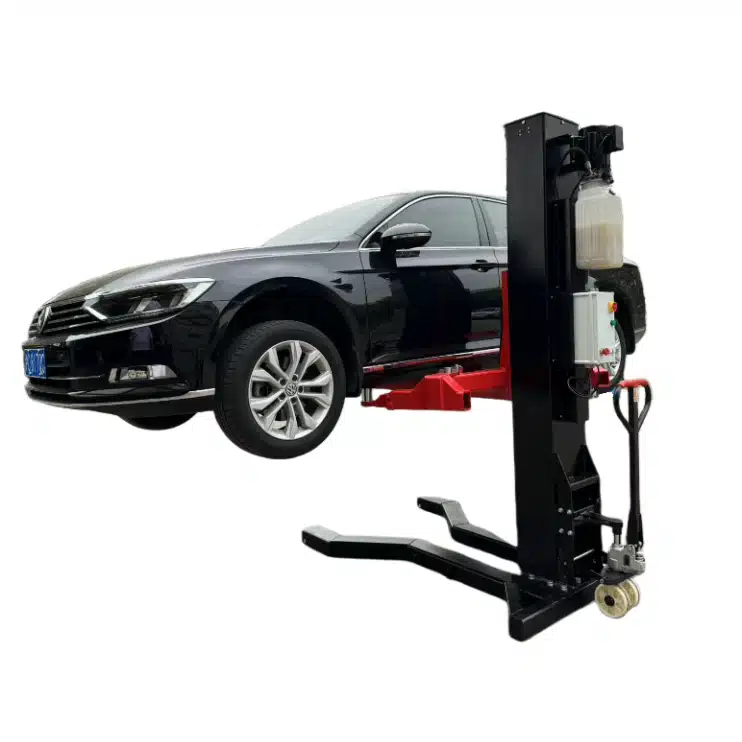

Moveable Single Post Lift Manual Release
The TP3.0-SP are produced with steel and applications are car parking, repairing, maintenance…
- Manual safely lock release system
- Screw action height adjustable pads with clearance height ≤ 125mm (4 3/10”)
- Powder coated finish
- Door protection pads
Moveable Single Post Lift Details
Single Post Lift TP3.0-SP, meticulously engineered to optimize your vehicle servicing workflow. This lift is equipped with a manual safety lock release system for enhanced control and a screw action height adjustable pad system, accommodating a clearance height of ≤ 125mm for various vehicle profiles.
The robust powder-coated finish not only adds to the aesthetic appeal but also provides superior durability against the rigors of daily use. To further protect your clients’ vehicles, we’ve integrated door protection pads to prevent any incidental damage during operation. The lift’s reliability is bolstered by an anti-surge hydraulic valve and a hydraulic system with fixed pressure, ensuring smooth and consistent performance.
Our commitment to safety and quality is demonstrated by the CE certification of the Single Post Lift 3.0-H, assuring you of its compliance with European safety directives. We believe that our product will be a valuable addition to your service offerings, and we are keen to assist you in its integration.
Moveable Single Post Lift Specifications
| Model | QJY3.0-H |
| Capacity | 3000kg / 7000lbs |
| Lifting height | 1800mm/ 70.9‘’ |

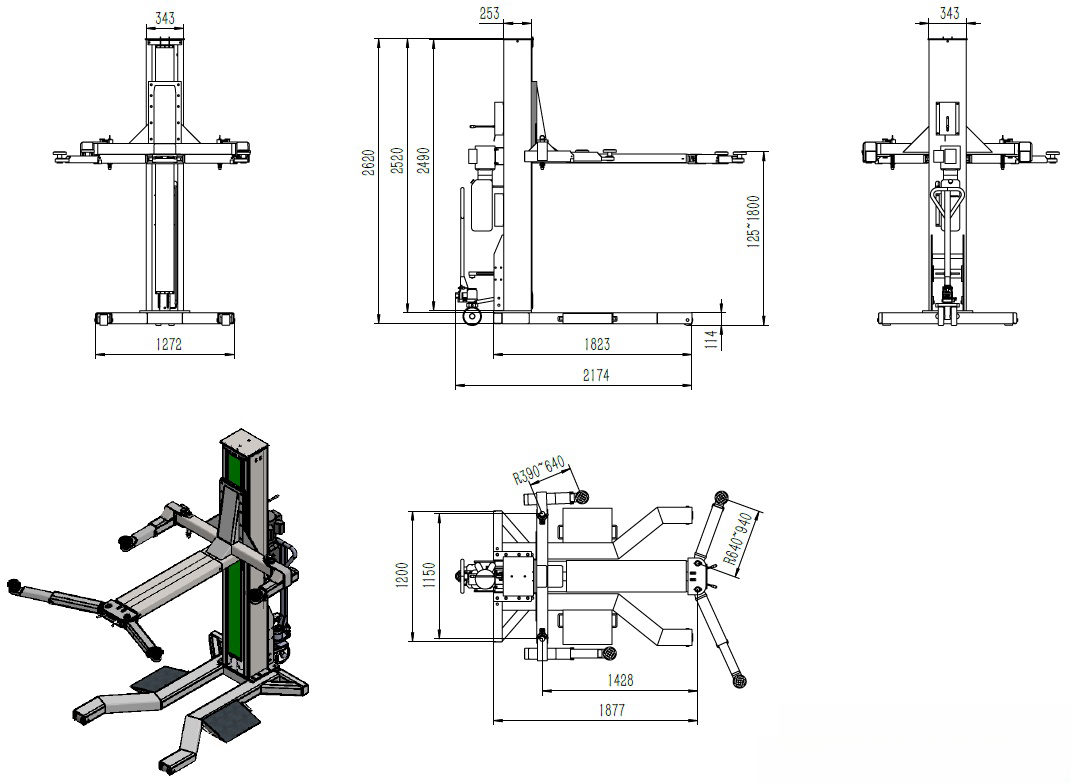

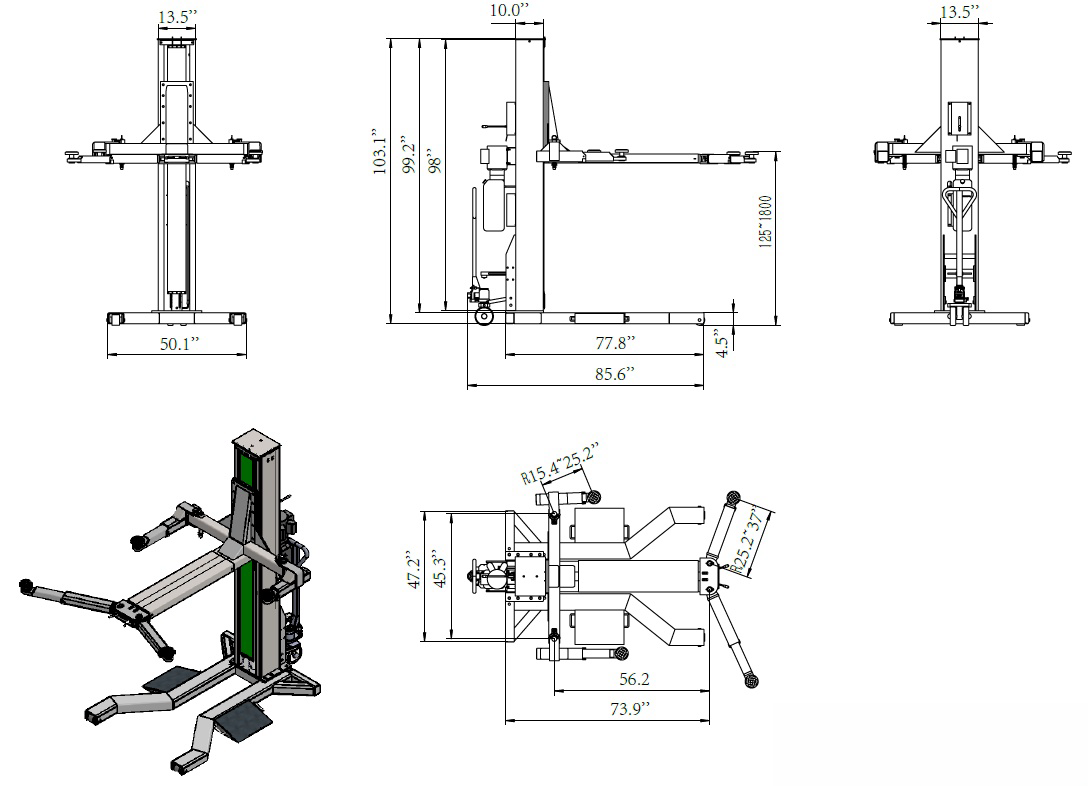

| Outer dimensions | 2620*1272*2173mm |
| Power of motor | 2.2kw |
| Power supply | 110v/220v/380v |
| Net weight | 750kg |
| Packing size | 2500*700*350mm |
Moveable Single post lift Scenarios
This lift boasts a manual safety lock release system, providing operators with precise control and peace of mind. The adjustable pads feature a screw action mechanism, ensuring a snug fit for vehicles with a clearance height of ≤ 125mm, making it versatile for a wide range of models.
Our commitment to durability is evident in the powder-coated finish, which resists wear and tear, and the door protection pads, which shield vehicle doors from accidental damage. The lift’s performance is further enhanced by an anti-surge hydraulic valve, which prevents overloads, and a hydraulic system set to a fixed pressure for consistent operation.
The Single Post Lift TP3.0-SP proudly carries the CE certification, signifying its adherence to the stringent European safety standards. We are confident that this lift will not only meet but exceed your operational requirements, providing a seamless and safe experience for your technicians and customers alike.
