Professional Four Post Hydraulic Car Parking Lift Garage Equipment
The TP3.5-4PP are produced with steel and applications are car parking, repairing, maintenance…
- 3500kg(8000lbs) lifting weight,1920mm (75 3/5”) lifting height
- 4300mm (169 3/10”) runway length can meet your various parking needs for most of the passenger cars,SUVs or pick up trucks
- Min.117mm(4 3/5”) low profile runway which is essential for parking low chassis sports car
- Standard oil drip tray and jack tray
Products Categories
Get A Free Quote
Four Post Car Parking Lift Details
TP3.5-4PP 4 Post Car Parking Lift, a versatile solution tailored to streamline your parking facilities. This robust system boasts a substantial 3500kg lifting weight and an impressive 1920mm lifting height, ensuring compatibility with a wide range of vehicles including SUVs and pickup trucks. The 4300mm runway length is meticulously designed to accommodate various car models.
Our lift’s minimum 120mm low profile runway is specifically engineered for the safe parking of low chassis sports cars, safeguarding against potential undercarriage damage. We’ve integrated standard features such as oil drip and jack trays to maintain a clean and efficient workspace.

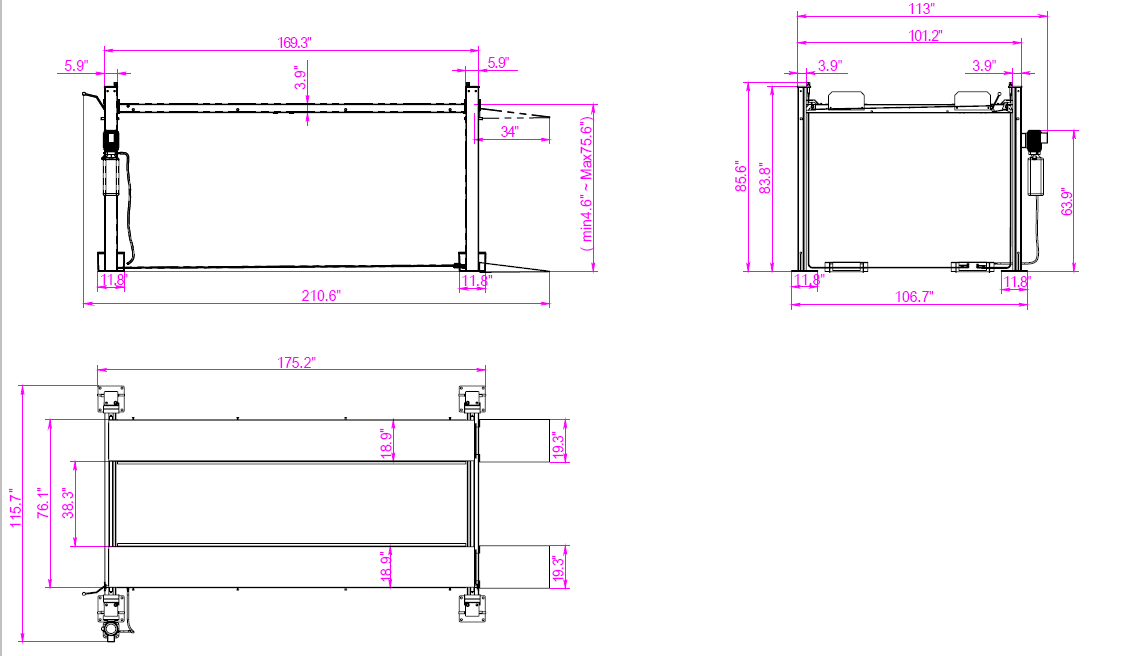

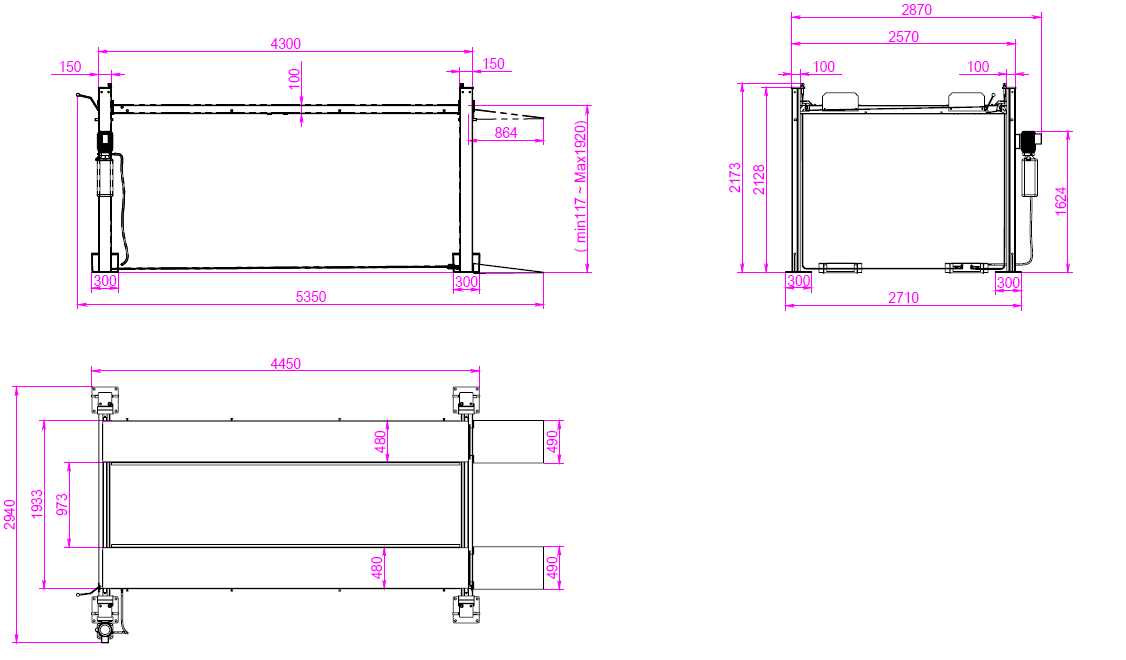

Four Post Parking Lift Specifications
| Model | TP3.5-4PP |
| Capacity | 3500kg / 8000lbs |
| Lifting height | 1920mm/ 75.6‘’ |
| Runway length | 4300mm /169.3” |
| Outer dimensions | 5350*2940*2173mm |
| Power of motor | 2.2kw |
| Power supply | 110v/220v/380v |
| Net weight | 730kg |
| Packing size | 4400*530*730mm |
Four Post Parking Lift Application Scenarios
This robust system supports a substantial 3500kg, with a 1920mm lift height and a 4300mm runway, accommodating a wide array of vehicles, from sedans to SUVs and pickups.
The TP3.5-4PP sets itself apart with a minimal 120mm low profile runway, perfect for the sleek designs of sports cars, ensuring their protection and your peace of mind. Standard features include oil drip and jack trays, preserving the cleanliness and functionality of your space.
We also provide optional enhancements to tailor the system to your specific needs: a 24V safety control voltage for added security, mobile kits for flexible installation and repositioning, and aluminum inserts to create a uniform parking surface, suitable for a variety of vehicle types, including compact cars and motorcycles.

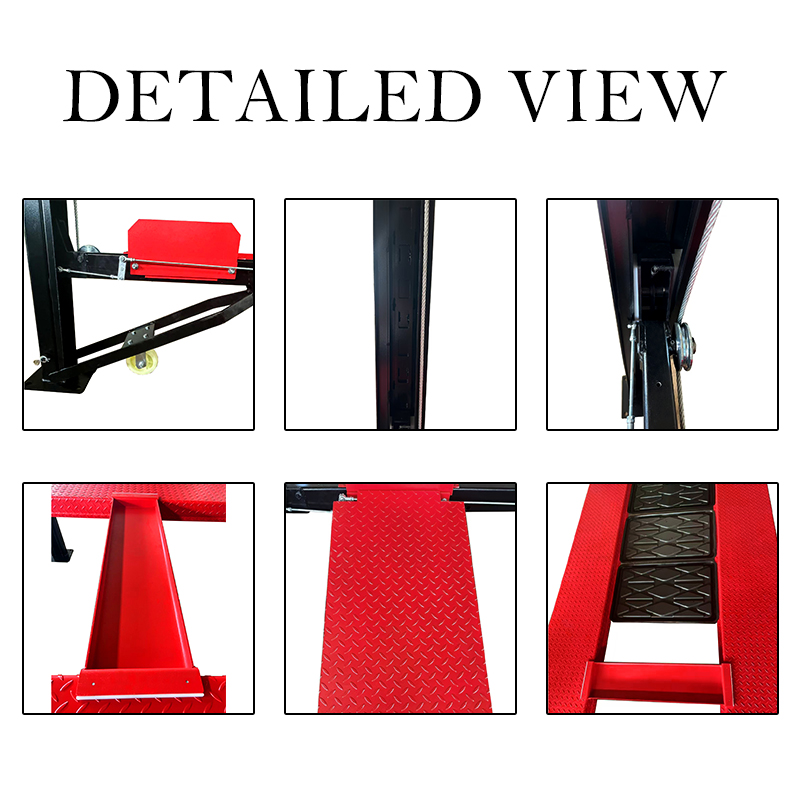

Four Post Hydraulic Car Parking Lift Detailed View
