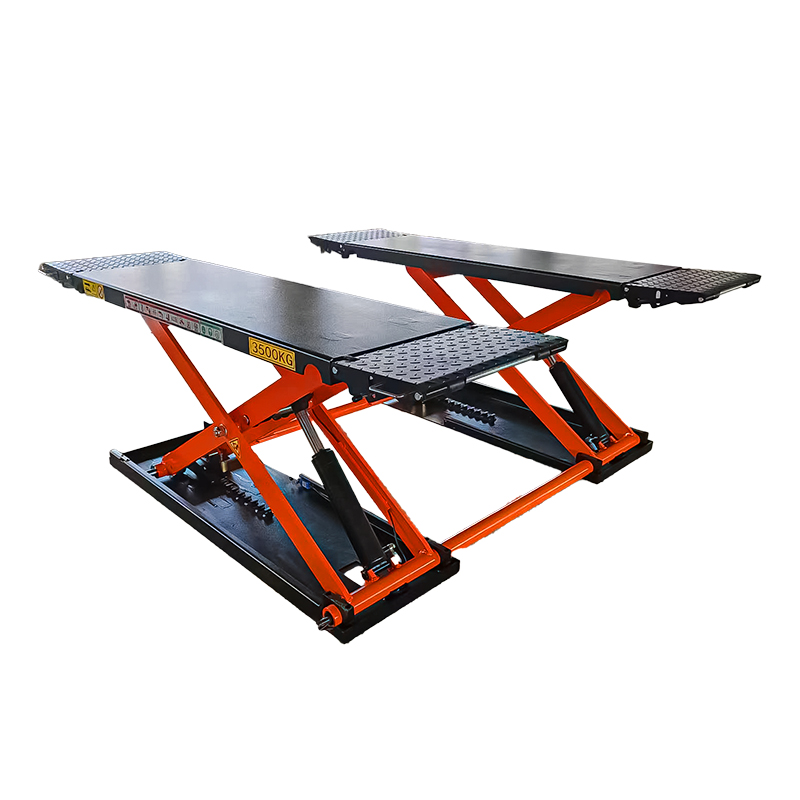

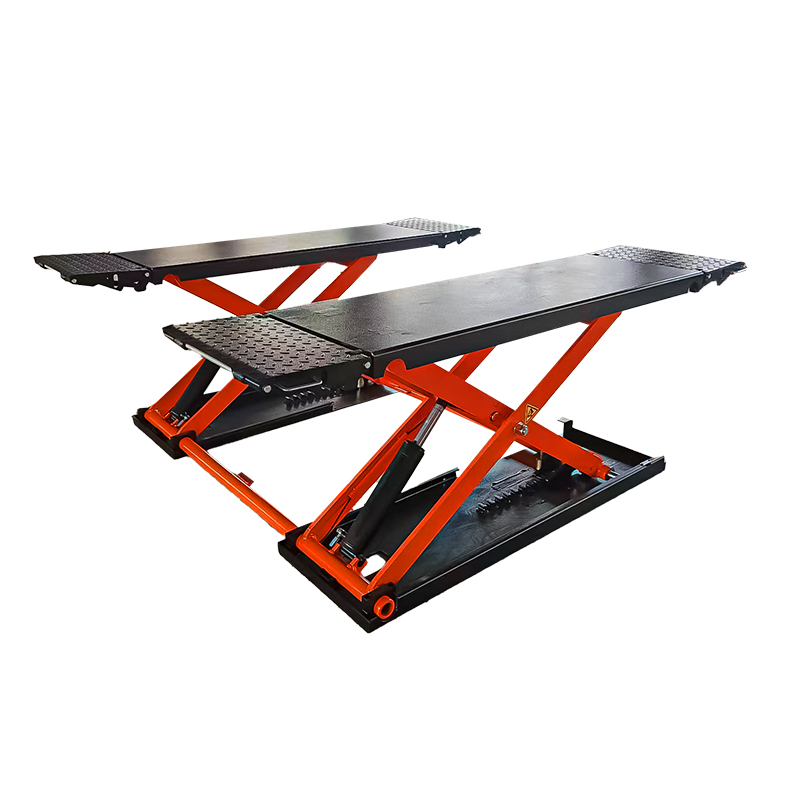

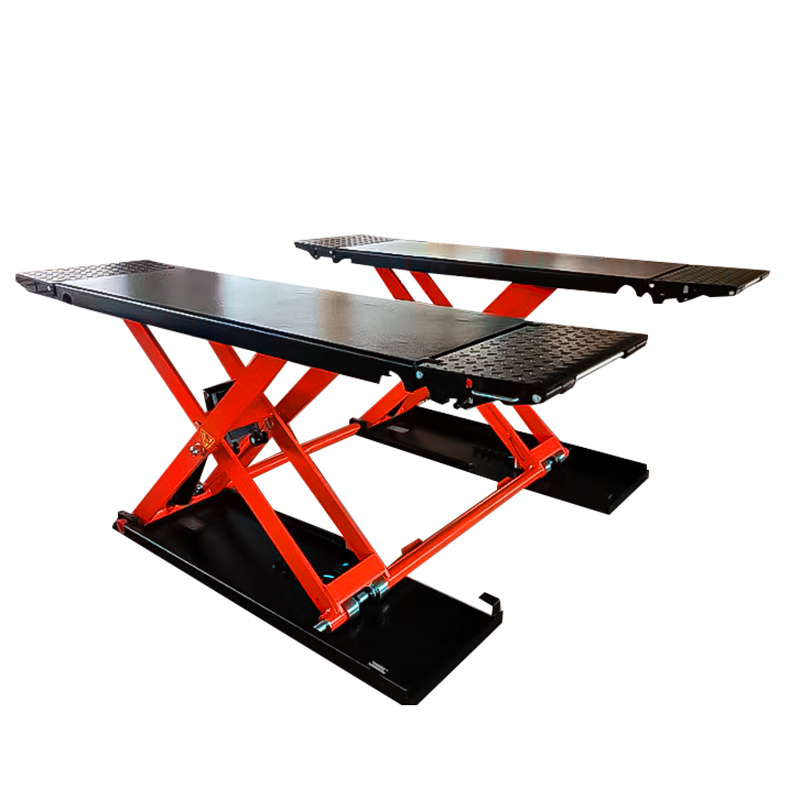

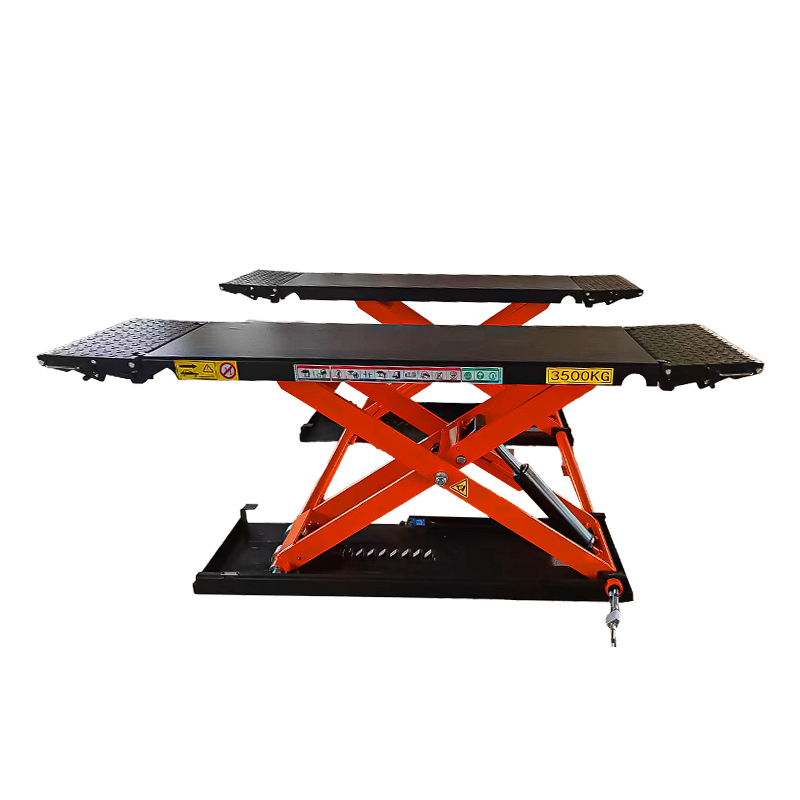

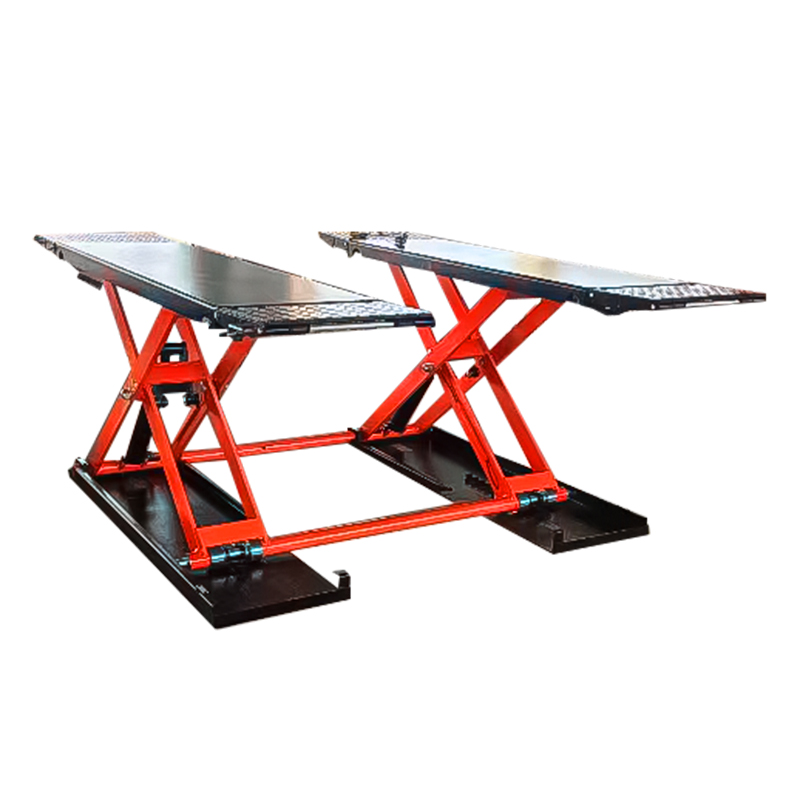

TP-S2E3500 Professional Mid Rise Scissor Lift Garage Equipment
The TP-S2E3500 are produced with steel and applications are car parking, repairing, maintenance…
- Convenient tire repair
- Direct use without installation
- Platform extension for longer vehicies
- Pneumatic safety lock
Mid Rise Scissor Lfit Details
The TP-S2E3500 is thoughtfully designed with an extendable platform to accommodate longer vehicles, ensuring versatility across various models. Safety is paramount in our design; the lift is equipped with a pneumatic safety lock and a skid plate to prevent any vehicle movement during operations. Additionally, we prioritize operator well-being with built-in safety voltage and toe protection.
Our commitment to quality is demonstrated through stringent testing, with the TP-S2E3500 surpassing 120% dynamic and 150% static loading tests, reflecting its robust performance and reliability.

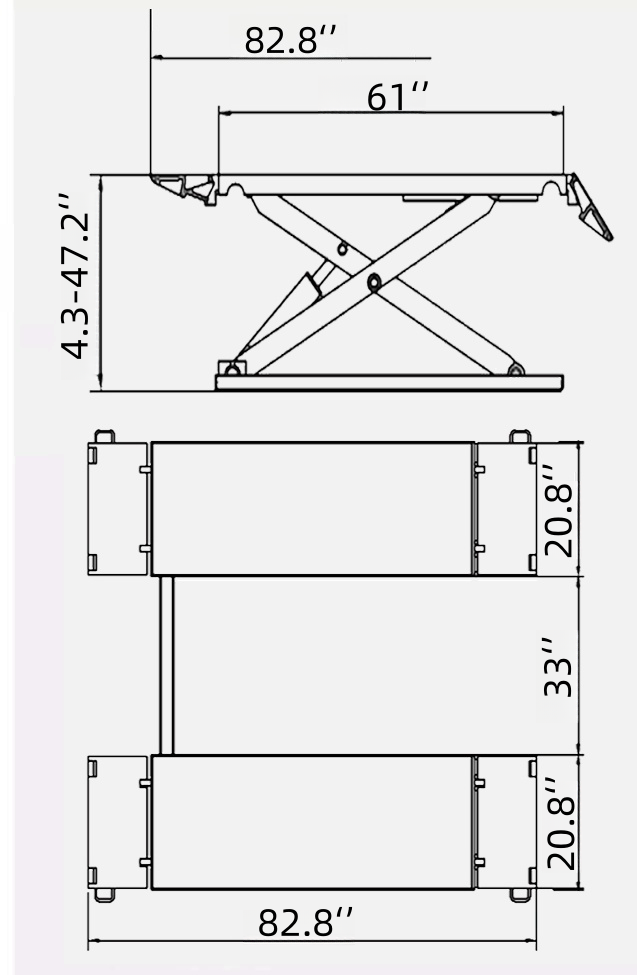

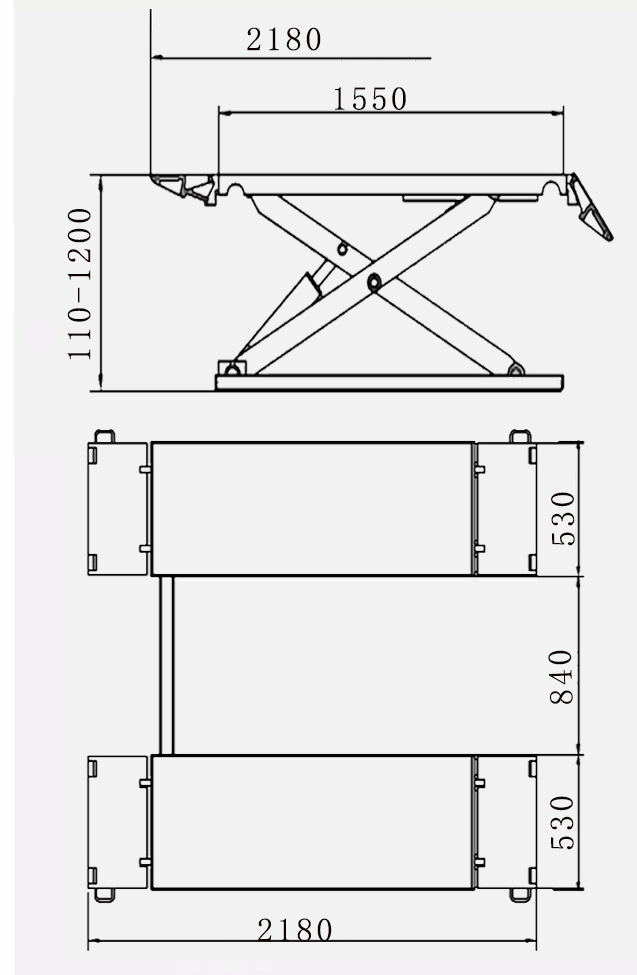

Mid Rise Scissor Lfit Specifications
| Model | TP-S2E3500 |
| Capacity | 3500kg / 8000lbs |
| Lifting height | 1200mm/ 47.2‘’ |
| Runway length | 1550mm /61” |
| Outer dimensions | 1900*2180*1200mm |
| Pressure | 0.3-0.5Mpa |
| Power supply | 220v/380v |
| Net weight | 570kg |
| Packing size | 1900*2180*110mm |
Mid Rise Scissor Lfit Application Scenarios
The TP-S2E3500 stands out with its hassle-free operation, requiring no installation, thus saving time and resources. Its platform is thoughtfully designed to extend, accommodating longer vehicles with ease. We have integrated a pneumatic safety lock to ensure the utmost stability during use, and the skid plate feature is specifically designed to prevent any vehicle slippage, offering an additional layer of safety.
Moreover, the lift is equipped with safety voltage and toe protection to safeguard your technicians during operation. We take pride in our rigorous quality assurance process, and the TP-S2E3500 has successfully passed a 120% dynamic and 150% static loading test, underscoring its exceptional durability and capacity.
