Reliable Four Post Hydraulic Alignment Lift For Car Repairing And Maintenance
TP-4P9B is produced with steel mainly and applications are car body shop, repair shop, car maintenance,aligning…
- One side release for safety locks,easy for descent operation
- Mechanical locks automatically engaged into position in ascending process
- Long slip plate and adjustable turntable positions
- accommodate different kinds of wheelbase
- 4612mm(181 3/5”) runway length for 4000kg&
- 5094mm(200 3/5”) runway length fro 5000kg capacity
- Self-lubricating pulleys and pre-tensioned wire rope for extended service life
Products Categories
Get A Free Quote
Four Post Alignment Lift Details
The one-side release for safety locks can ensure easy and secure descent operation. Additionally, the mechanical locks automatically engage into position during the ascending process, providing added safety.
The 4612mm (181 3/5″) runway length for the 4000kg capacity and the 5094mm (200 3/5″) runway length for the 5000kg capacity allow for accommodating different kinds of wheelbases. Moreover, the self-lubricating pulleys and pre-tensioned wire rope contribute to an extended service life.
Our 4 post car lift features a simple yet reliable design, making it user-friendly and easy to install on-site. Furthermore, it is less demanding on the foundation, saving you time and resources.
Our lift is CE certified and equipped with safety devices that immediately respond in case of cable slacks or failures.
I believe that our 4 post car lift can greatly benefit your business. I would be delighted to discuss further details and explore how we can collaborate to enhance your operations.

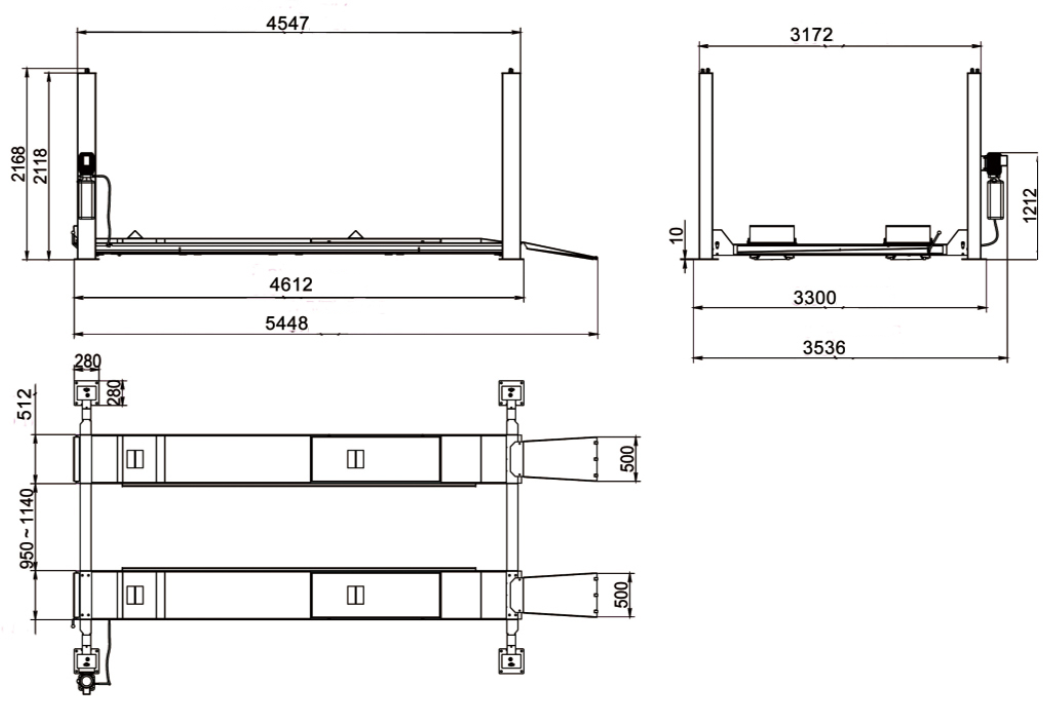

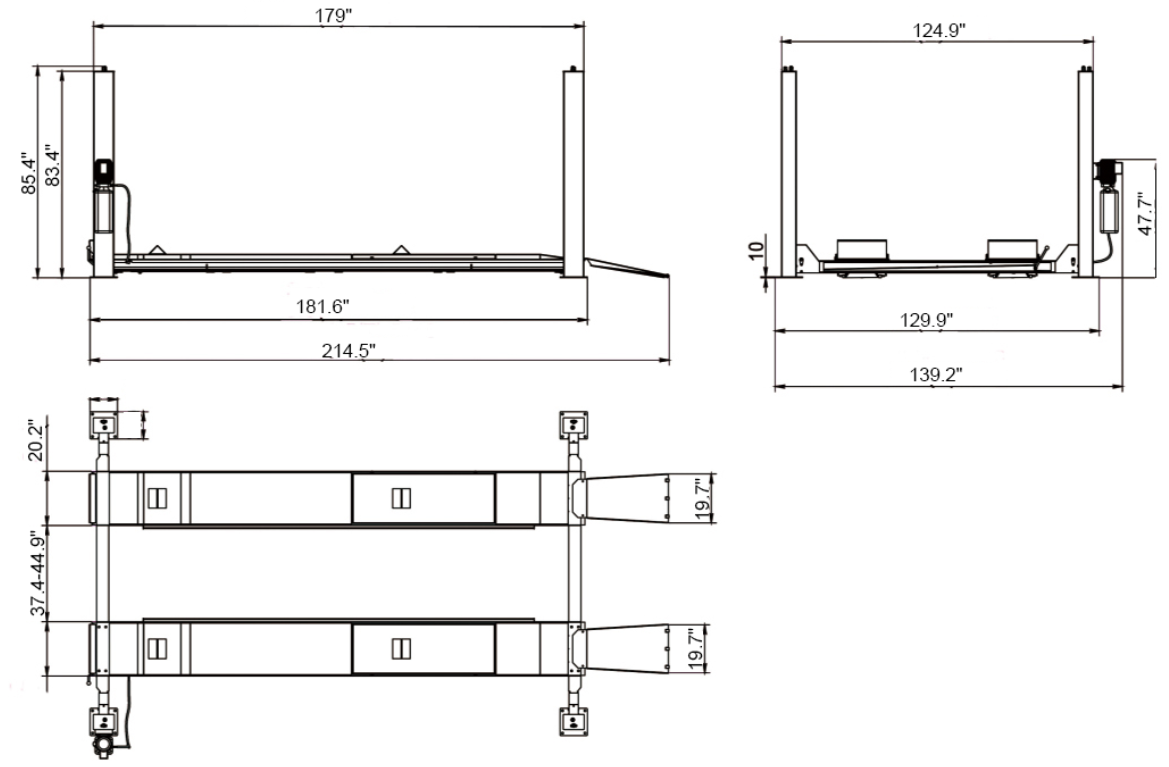

Four Post Car Lift Specifications
| Model | TP-4P9B |
| Capacity | 4000kg / 9000lbs |
| Lifting height | 1750mm/ 68.9‘’ |
| Runway length | 4547mm /179” |
| Outer dimensions | 5423*3320*2118mm |
| Power of motor | 2.2kw |
| Power supply | 110v/220v/380v |
| Net weight | 1298kg |
| Packing size | 4800*600*740mm |
Four Post Alignment Lift Application Scenarios
Our four post alignment lift has many functions and can be used for parking vehicles, maintenance, and four-wheel alignment. It can be used together with our four-wheel alignment device to meet your needs. It is commonly used in home garages, vehicle repair shops, and vehicle production lines.Its stable platform and adjustable features make it ideal for accommodating different wheelbases and vehicle types, ensuring efficient and safe operations in automotive service environments.

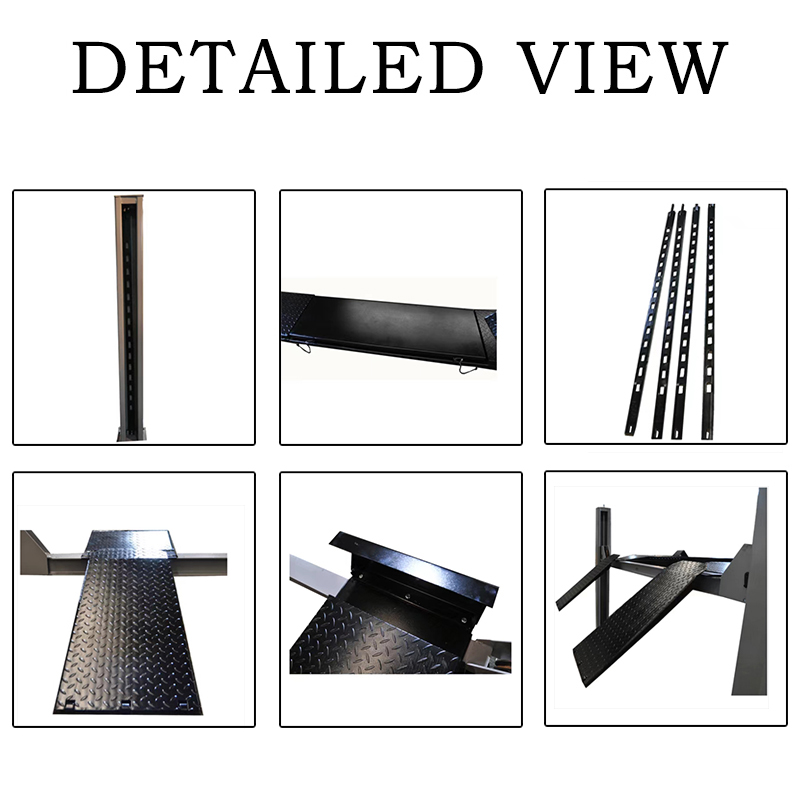

Four Post Hydraulic Alignment Lift Detail Display
