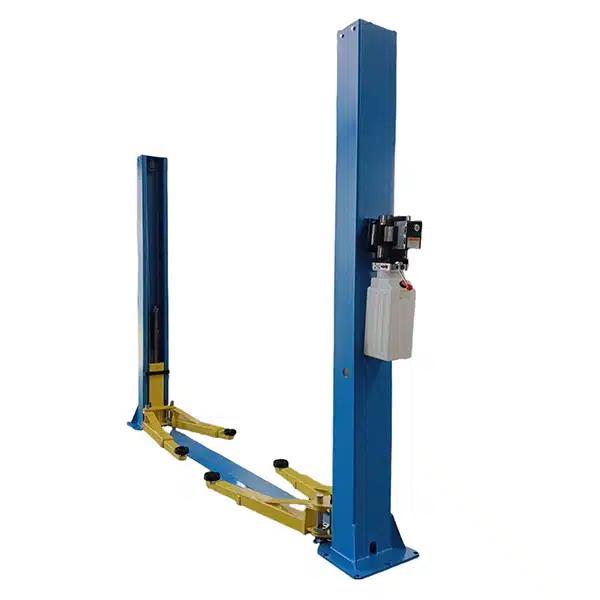

TP-2PBPB2 Two Post Lift With Manual Two Side Release
The TP-2PBPD2 are produced with steel and applications are repairing, maintenance…
- 1910mm (75 1/5”) lifting height
- Baseplate lift for low ceiling application. Manual two side release
- The optional triple stage arms combination make the lift can accommodate
- wide range of vehicles from smart to SUVs, light van
Products Categories
Get A Free Quote
Two Post Car Lift Details
Lifting capacity 4000kg (9000lbs)
Manual two side lock release system
Bas Plate design make under-vehicle service more convenient
Optional 24V power control box considers safety operation
Top limit switch effectively avoid unexpected injuries and damages
Dual hydraulic cylinder drive, stable lifting and lowering
Durable powder coating
The optional triple stage arms combination make the lift can accommodate wide range of vehicles from Smart to SUV, light van
Adopt two steel cables for equalization, force two carriage to move synchronously1910mm (75 1/5″) lifting height • Baseplate lift for low ceiling application
The optional triple stage arms combination make the lift can accommodate
wide range of vehicles from Smart to SUV, light van
Drop in type lifting pads with clearance height less than 100mm (39/10″)
The arm locks engage automatically when the lift is raised and disengage when fully lowered Top and bottom pulley mount design avoid pulley coming off
CE certificated
Two Post Car Lift Specifications
| Model | TP-2PBPD2 |
| Capacity | 4000kg / 9000lbs |
| Lifting height | 1910mm/ 75.3‘’ |

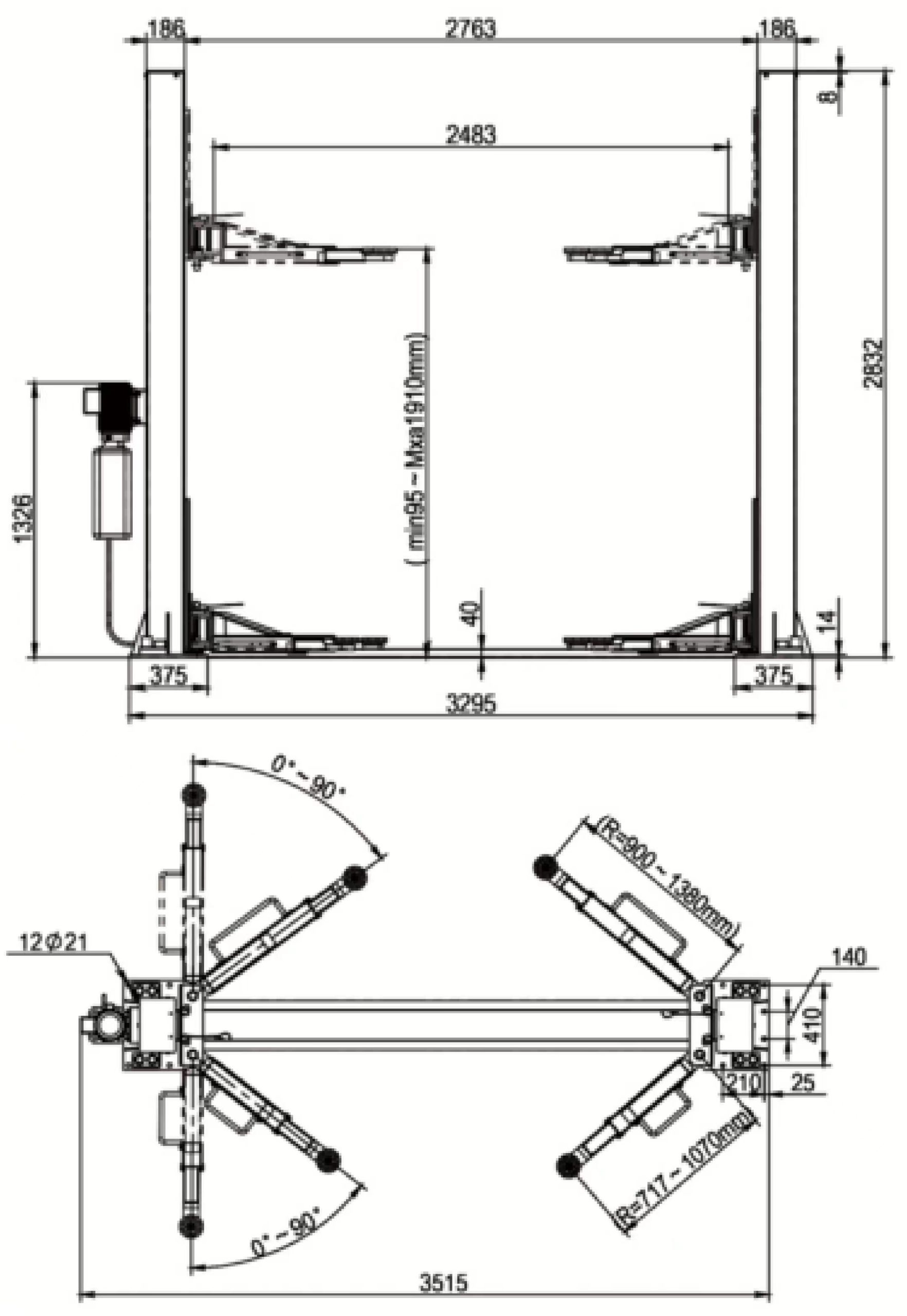

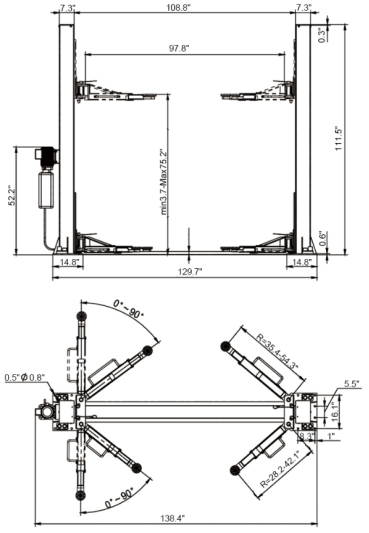

| Outer dimensions | 410*3295*2832mm |
| Power of motor | 2.2kw |
| Power supply | 220v/380v |
| Net weight | 575kg |
| Packing size | 2800*470*740mm |
Two Post Car Lift Application Scenarios
TP-2PBPD2 Two Post Car Lift, a stellar addition to any automotive service center. This robust lift boasts a 1910mm (75 1/5”) lifting height, ideal for low-ceiling environments, and is equipped with a manual two-side release for ease of use.
Its versatility is unmatched, with optional triple stage arms that can handle a spectrum of vehicles, from compact cars to SUVs and light vans. The lift’s innovative design includes drop-in type lifting pads for low-clearance vehicles and automatic arm locks that engage when raised, ensuring maximum safety.
Finished with a durable powder coating and a secure pulley mount design, the QJY4.0-D promises longevity and uninterrupted service

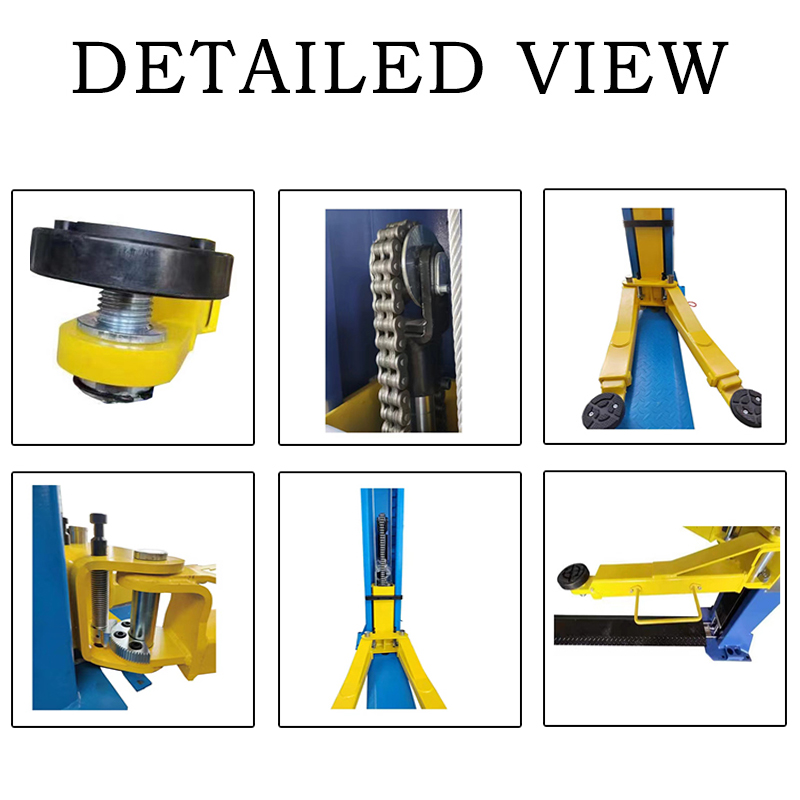

TP-2PBPB2 Two Post Lift Detail Display
